Greenhouse Rack and Pinion Set, Made to Drawing

Model: Greenhouse Rack and Pinion Set, Made to Drawing

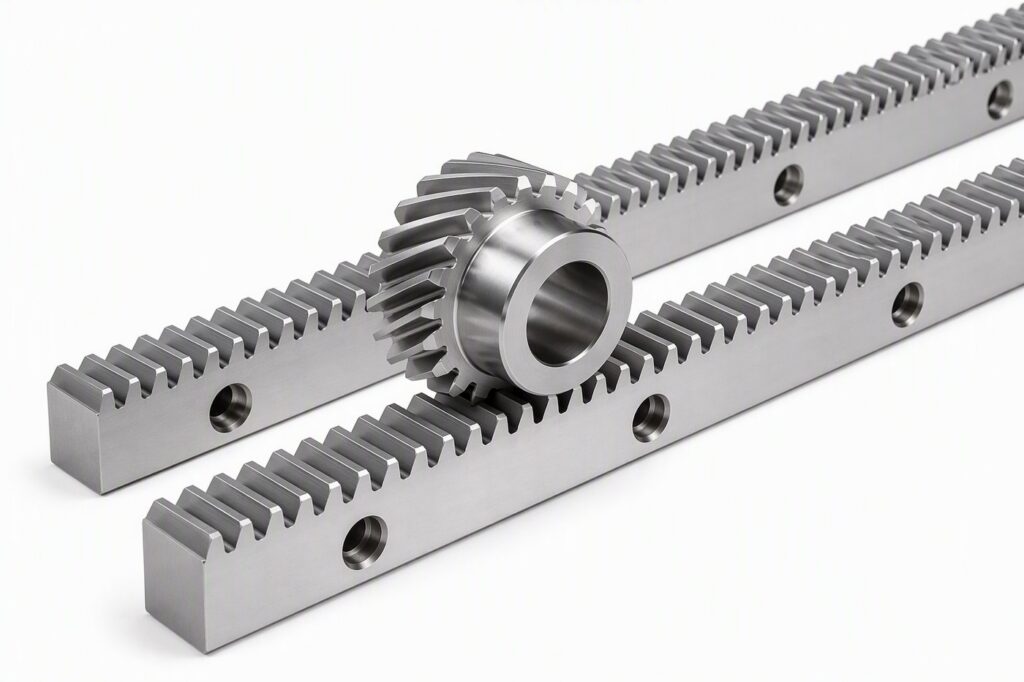

Greenhouse Rack and Pinion Set, Made to Drawing (model Greenhouse Rack and Pinion Set, Made to Drawing) from the KEDI Precision Gear Racks range, Gear, Rack & Synchronous Drive Series. Standard sizes ship quickly; material, heat treatment, bore and finish can be customised to drawing.

Bore and keywayMachined to your drive shaft
Fixing holesDrilled to your mounting pattern
Module / tooth pitchSpecified per order — please advise or send sample
Rack length or arc geometryMade to drawing
Shaft diameterMade to drawing
Toothed rackLinear or arc form, galvanized steel

Send inquiry CAD / technical drawings

Specifications & dimensions

Bore and keyway	Machined to your drive shaft
Fixing holes	Drilled to your mounting pattern
Module / tooth pitch	Specified per order — please advise or send sample
Rack length or arc geometry	Made to drawing
Shaft diameter	Made to drawing

Technical parameters

Toothed rack	Linear or arc form, galvanized steel
Mating pinion	Involute spur, tooth form matched to the rack
Pinion housing / support	Supplied where required by the drive arrangement

Values are nominal; final dimensions are confirmed against the approved drawing.

CAD / technical drawings

2D/3D drawings (PDF, DWG, STEP) for this model are available on request.

Request drawing

Performance features

Spur and helical tooth forms
DIN accuracy options for precision motion
Heat treatment and surface treatment options
Rack sections can be joined for long travel

Application scenarios

CNC machines
Automation gantries
Laser and cutting equipment
Material handling systems

Industries served

CNC machine toolsIndustrial automationGate & door automationPrinting & packagingGreenhouse & agriculture

Product description

Precision spur and helical gear racks for long-stroke linear motion. Company product information supports modules M1 to M12, lengths such as 500/1000/2000 mm and DIN precision grades. This page is prepared for model identification, preliminary selection and quotation. The exact production configuration should be confirmed before order placement.

Precision Gear Racks
