Custom CNC Milled Component
Custom Machined Parts

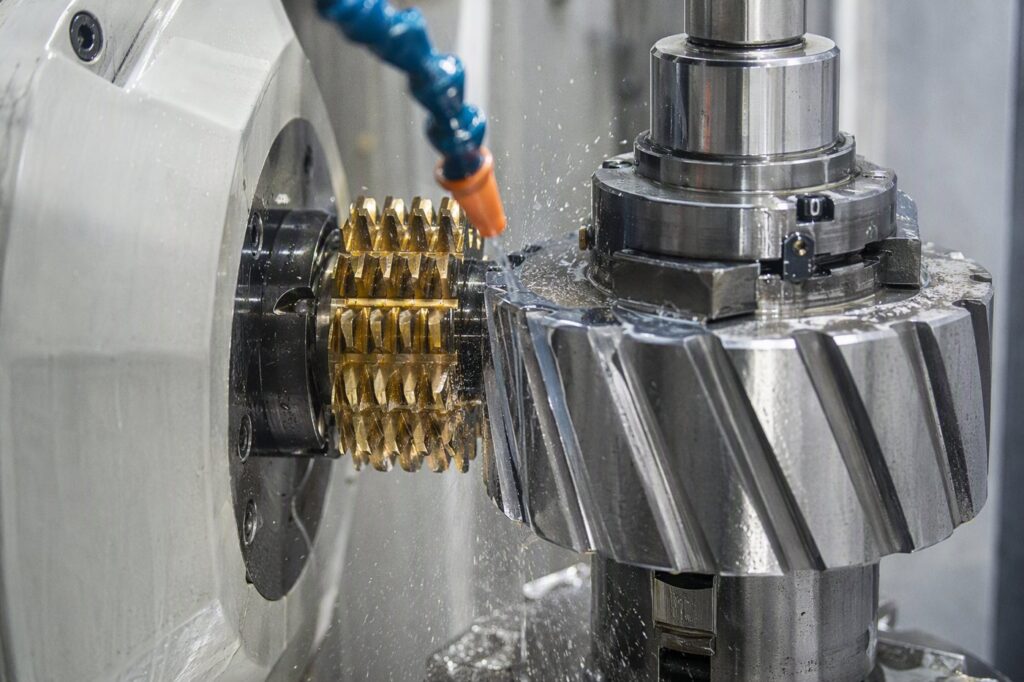

Custom CNC Milled Component
Model: KD-CP-09
Custom CNC Milled Component machined to your drawing or sample — turning, milling, gear cutting, heat treatment and finishing, with first-article inspection report.
- Size rangeØ5–Ø500 mm / L up to 2000 mm
- ToleranceUp to IT6 on request
- Surface roughnessRa 0.8–3.2 μm
- MaterialCarbon steel, alloy steel, stainless steel, aluminium, brass
- ProcessCNC turning, milling, gear cutting, grinding
- Heat treatmentQuenching & tempering, carburising, induction hardening
Specifications & dimensions
| Size range | Ø5–Ø500 mm / L up to 2000 mm |
| Tolerance | Up to IT6 on request |
| Surface roughness | Ra 0.8–3.2 μm |
Technical parameters
| Material | Carbon steel, alloy steel, stainless steel, aluminium, brass |
| Process | CNC turning, milling, gear cutting, grinding |
| Heat treatment | Quenching & tempering, carburising, induction hardening |
| Surface finish | Black oxide, zinc plating, nickel, anodising |
| Drawing format | PDF / DWG / STEP / IGES |
Values are nominal; final dimensions are confirmed against the approved drawing.
CAD / technical drawings
2D/3D drawings (PDF, DWG, STEP) for this model are available on request.
Request drawingPerformance features
- Made to your 2D/3D drawing or sample
- First-article inspection with CMM report
- Small batches and mass production
- Matched with standard transmission parts
Application scenarios
- Replacement parts for imported equipment
- New machine development
- Transmission system upgrades
Industries served
Equipment OEMsIndustrial automationMachine toolsAgricultural machineryEnergy equipment
Custom Machined Parts
Related models
Model KD-CP-03
Custom Splined Shaft
- Size rangeØ5–Ø500 mm / L up to 2000 mm
- ToleranceUp to IT6 on request
- Surface roughnessRa 0.8–3.2 μm
Model KD-CP-07

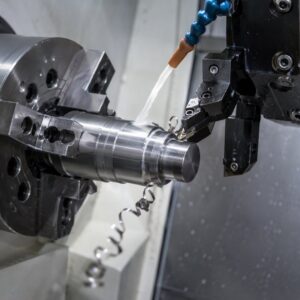

Custom Gear Shaft
