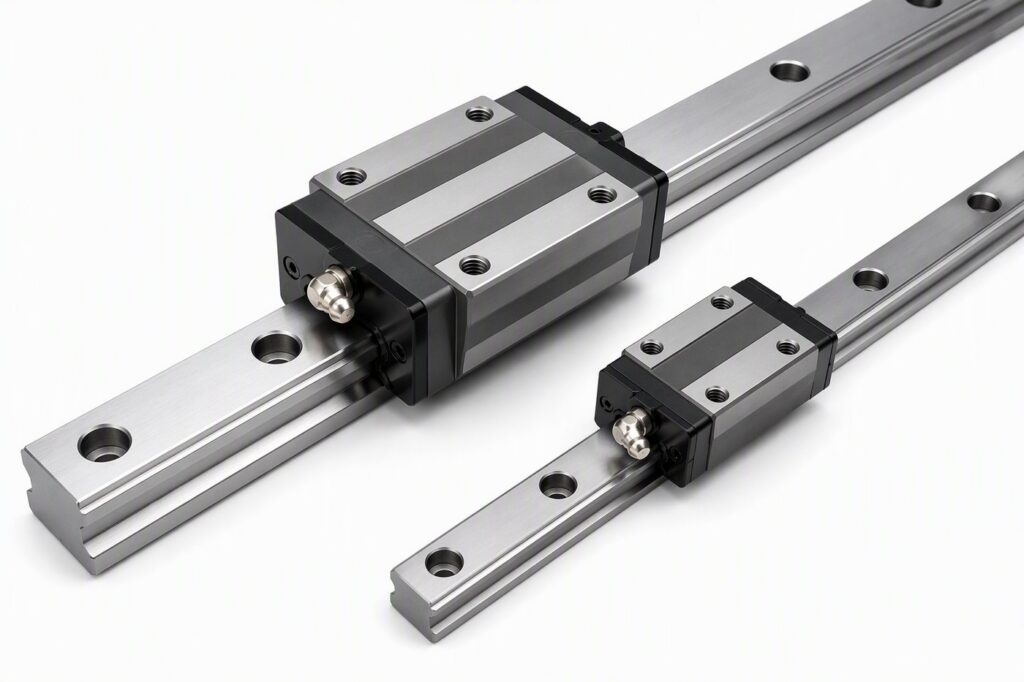

RGH15CA Linear Guide Block

Model: RGH15CA

RGH15CA Linear Guide Block (model RGH15CA) from the KEDI Linear Guideway range, Linear Guide & Ball Screw Series. Standard sizes ship quickly; material, heat treatment, bore and finish can be customised to drawing.

Nominal Size15
H28 mm
W34 mm
L68 mm
SeriesRG
Block TypeHigh / square block

Send inquiry CAD / technical drawings

Specifications & dimensions

Nominal Size	15
H	28 mm
W	34 mm
L	68 mm

Technical parameters

Series	RG
Block Type	High / square block

Values are nominal; final dimensions are confirmed against the approved drawing.

CAD / technical drawings

2D/3D drawings (PDF, DWG, STEP) for this model are available on request.

Request drawing

Performance features

Multiple block forms and nominal sizes
Heavy-load, low-profile, miniature, wide and roller families
Preload, accuracy and sealing options by configuration
Matched use with the correct rail family and nominal size

Application scenarios

CNC machinery
Automation equipment
Robotics
Precision positioning systems

Industries served

CNC machine toolsSemiconductor & electronicsRobotics & automationMedical equipmentLaser & engraving

Product description

Linear guide blocks for precision profiled-rail systems, covering heavy-load, low-profile, miniature, wide and roller guide families for industrial motion applications. This page is prepared for model identification, preliminary selection and quotation. The exact production configuration should be confirmed before order placement.
