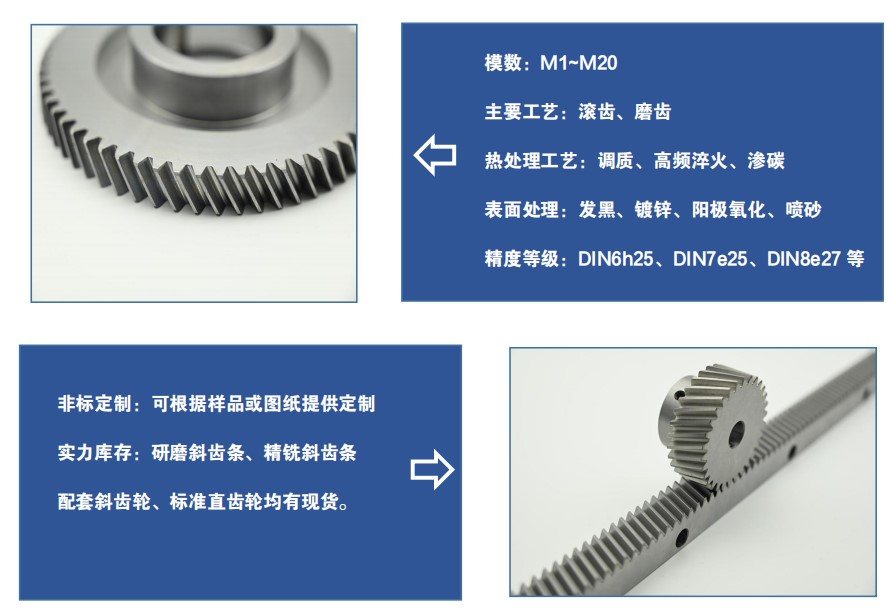

A rack is a straight toothed bar that meshes with a gear to turn rotation into linear motion. Our ground racks are finished on CNC gear-grinding machines with all faces ground and tip relief — suited to high-speed running. Ground and milled helical racks, matching helical gears and standard spur gears are kept in stock.
| Accuracy (ground rack) | DIN 6 (DIN 3962 / DIN 867), L5e24 — adjacent pitch error fp ≤ 0.003 mm, cumulative Fp ≤ 0.035 mm/m |
| Materials & hardness | C45 (induction hardened, HRC45), 42CrMo (induction hardened, HRC50), 20CrMnMo |
| Tooth form | 20° pressure angle; straight and helical teeth; module M1–M20 |
| Series | Notes |
|---|---|
| Ground helical rack | DIN 6, all faces ground, tip relief, in stock |
| Milled helical rack | Precision milled, in stock |
| Ground / milled straight rack | To drawing |
| Matching helical gear | Paired with helical racks, in stock |
| Standard spur gear | In stock |
| Model / profile | Pitch (mm) |
|---|---|
| M1 | 3.142 |
| M1.5 | 4.712 |
| M2 | 6.283 |
| M2.5 | 7.854 |
| M3 | 9.425 |
| M4 | 12.566 |
| M5 | 15.708 |
| M6 | 18.850 |
| M8 | 25.133 |
| M10 | 31.416 |
| M12 | 37.699 |
| M16 | 50.265 |
| M20 | 62.832 |
Non-standard tooth counts, widths, flanges, bores and keyways are machined to your drawing or sample.
Send it to us — we reply with a quotation and lead time.
