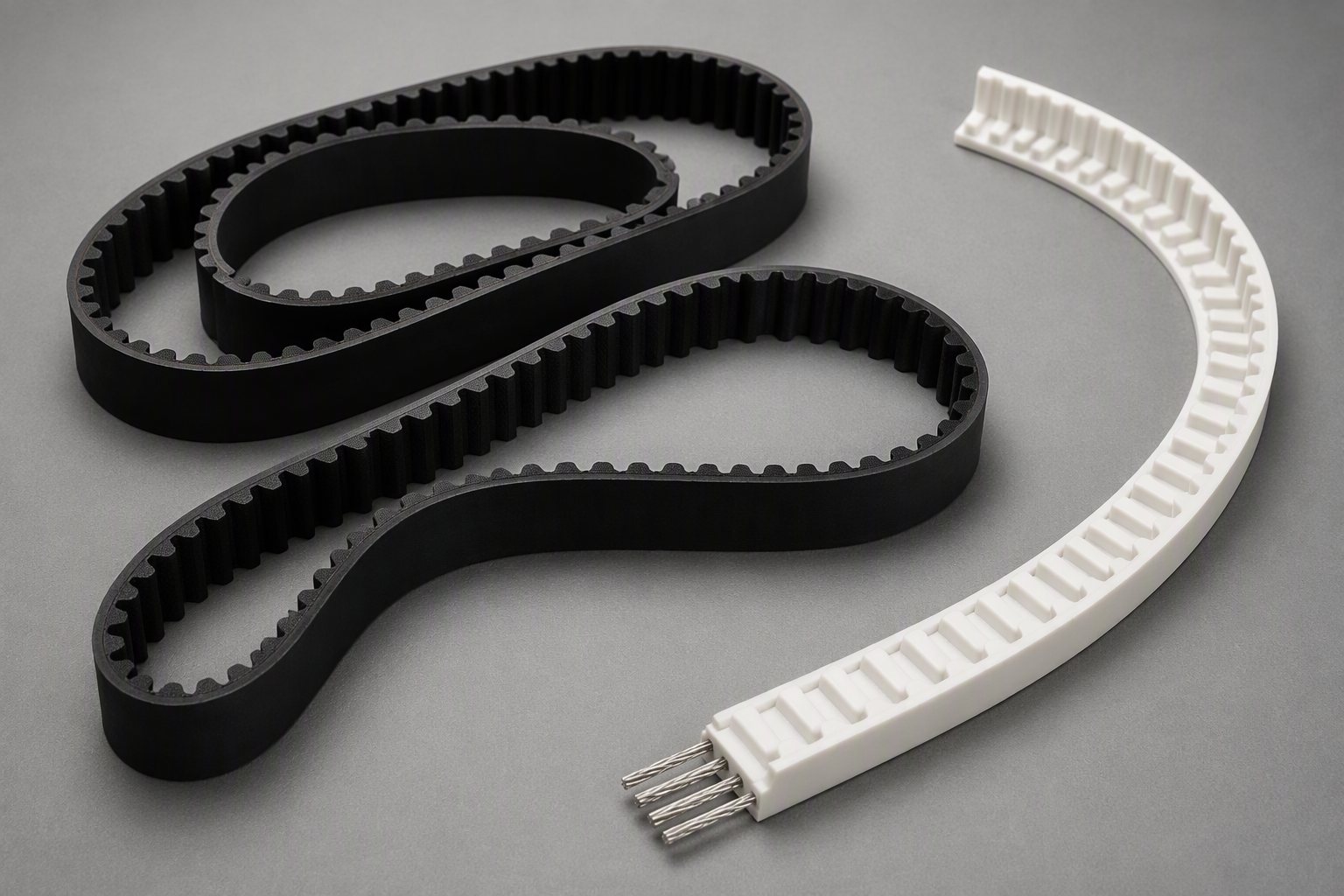

PU belts are made from imported thermoplastic polyurethane with steel cords for high wear resistance and tight tolerances; nylon facing on teeth and/or back and extra PU backing are available. Rubber belts are supplied in all common trapezoidal and T/AT profiles.
| PU belt construction | Thermoplastic polyurethane, steel tension cords; optional nylon facing (teeth / back) and extra PU backing |
| PU belt lengths | Joined (open-end welded) belts from 450 mm upward in any length; endless belts made on existing moulds |
| Rubber belt profiles | Trapezoidal MXL, XXL, XL, L, H, XH, XXH; metric T2.5, T5, T10, T20, AT5, AT10, AT20 |
| Model / profile | Pitch (mm) |
|---|---|
| MXL | 2.032 |
| XXL | 3.175 |
| XL | 5.080 |
| L | 9.525 |
| H | 12.700 |
| XH | 22.225 |
| XXH | 31.750 |
| Model / profile | Pitch (mm) |
|---|---|
| T2.5 | 2.5 |
| T5 | 5 |
| T10 | 10 |
| T20 | 20 |
| AT5 | 5 |
| AT10 | 10 |
| AT20 | 20 |
| Model / profile | Pitch (mm) |
|---|---|
| T5 / AT5 | 5 |
| T10 / AT10 | 10 |
| T20 / AT20 | 20 |
| XL / L / H | 5.08 / 9.525 / 12.7 |
| HTD 3M / 5M / 8M | 3 / 5 / 8 |
Non-standard tooth counts, widths, flanges, bores and keyways are machined to your drawing or sample.
Send it to us — we reply with a quotation and lead time.
