Precision Gear Racks
Gear, Rack & Synchronous Drive Series
Product overview

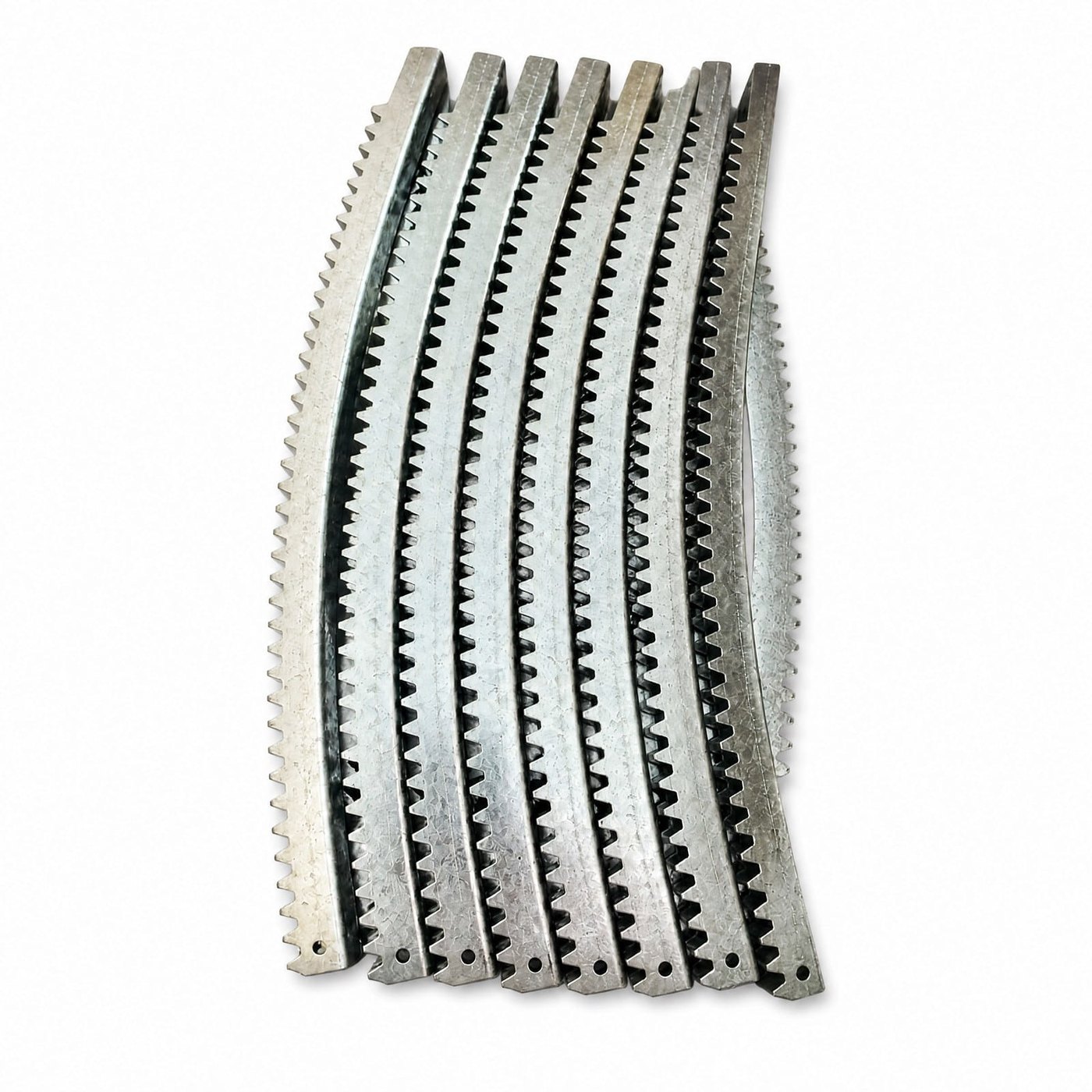

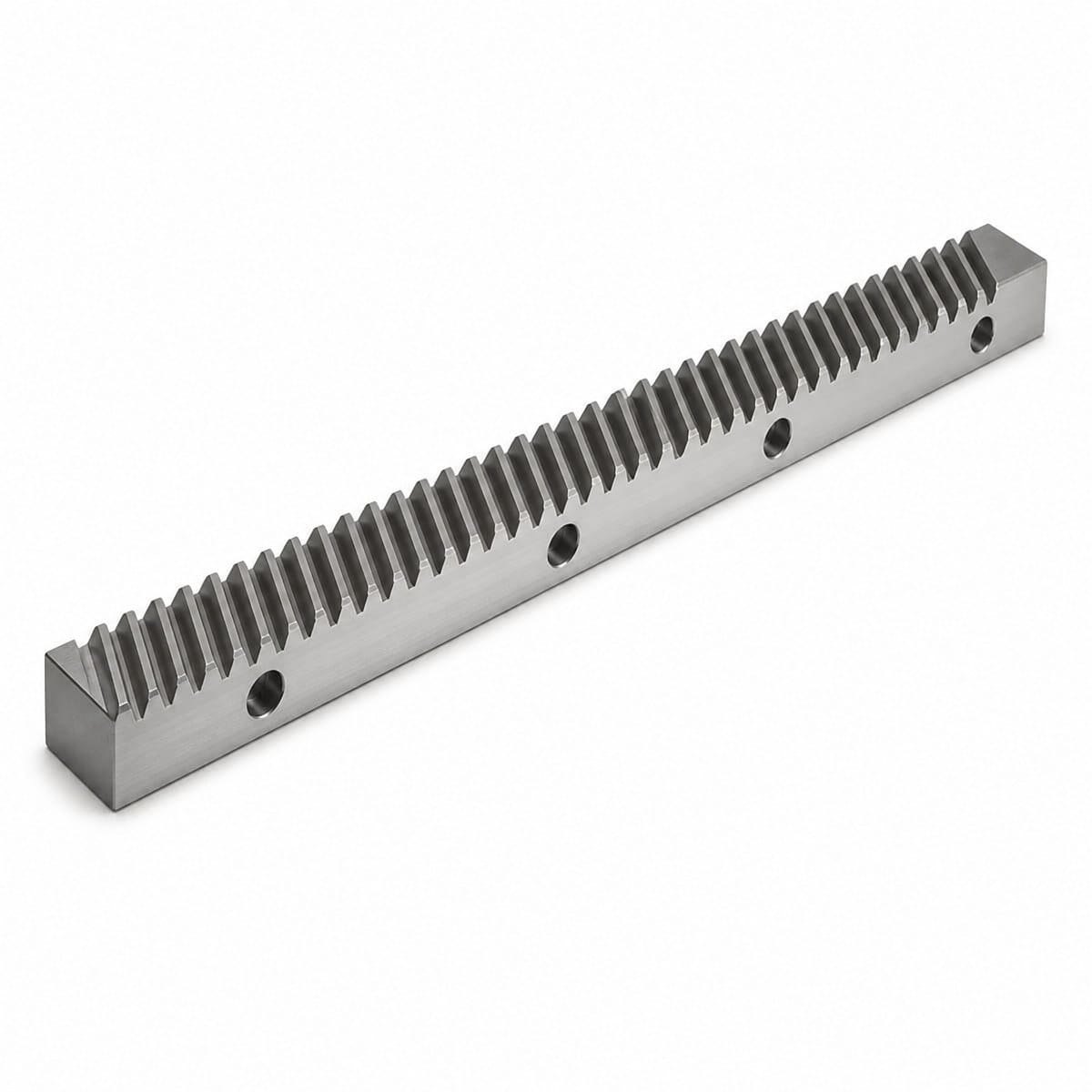

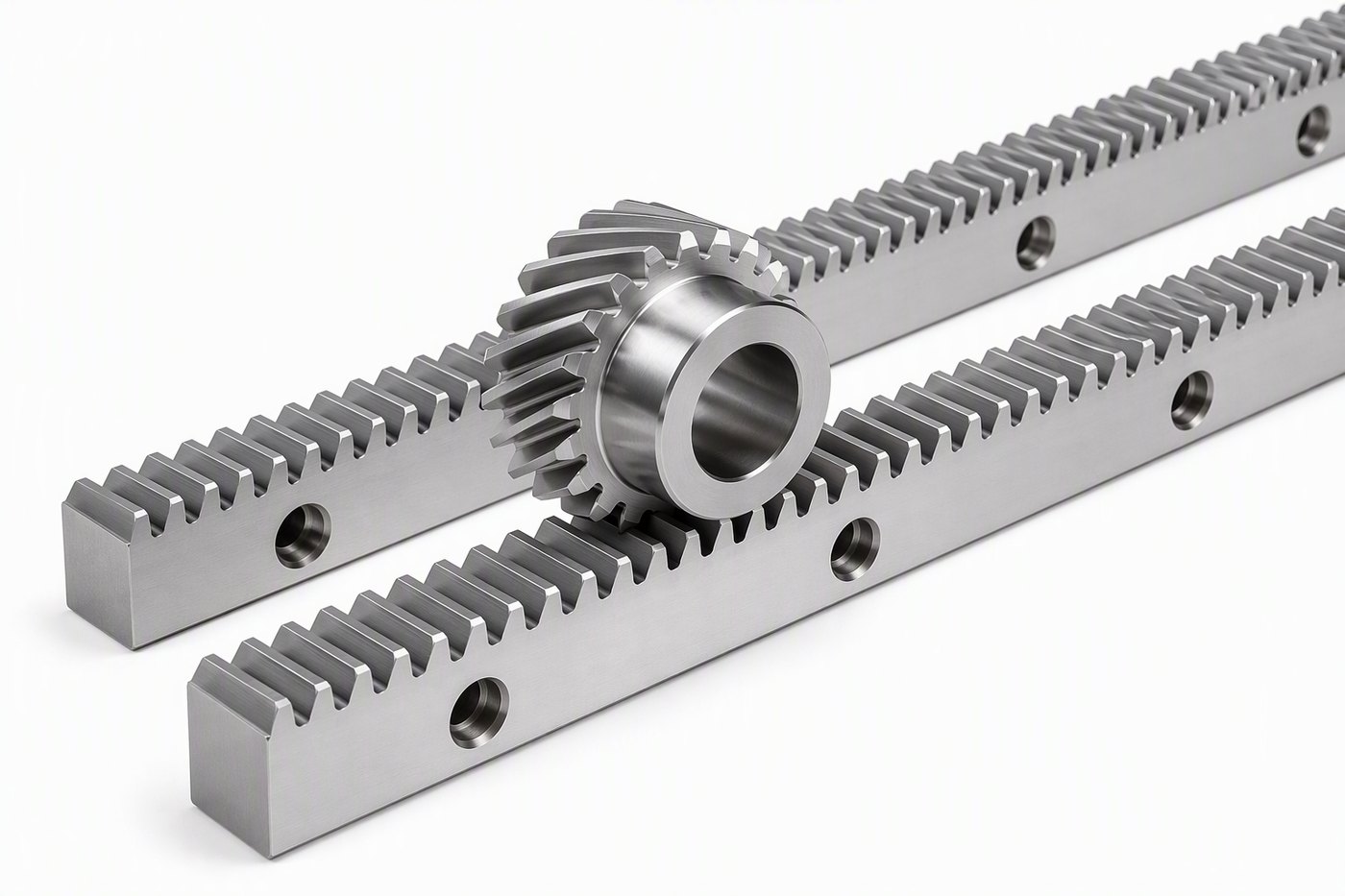

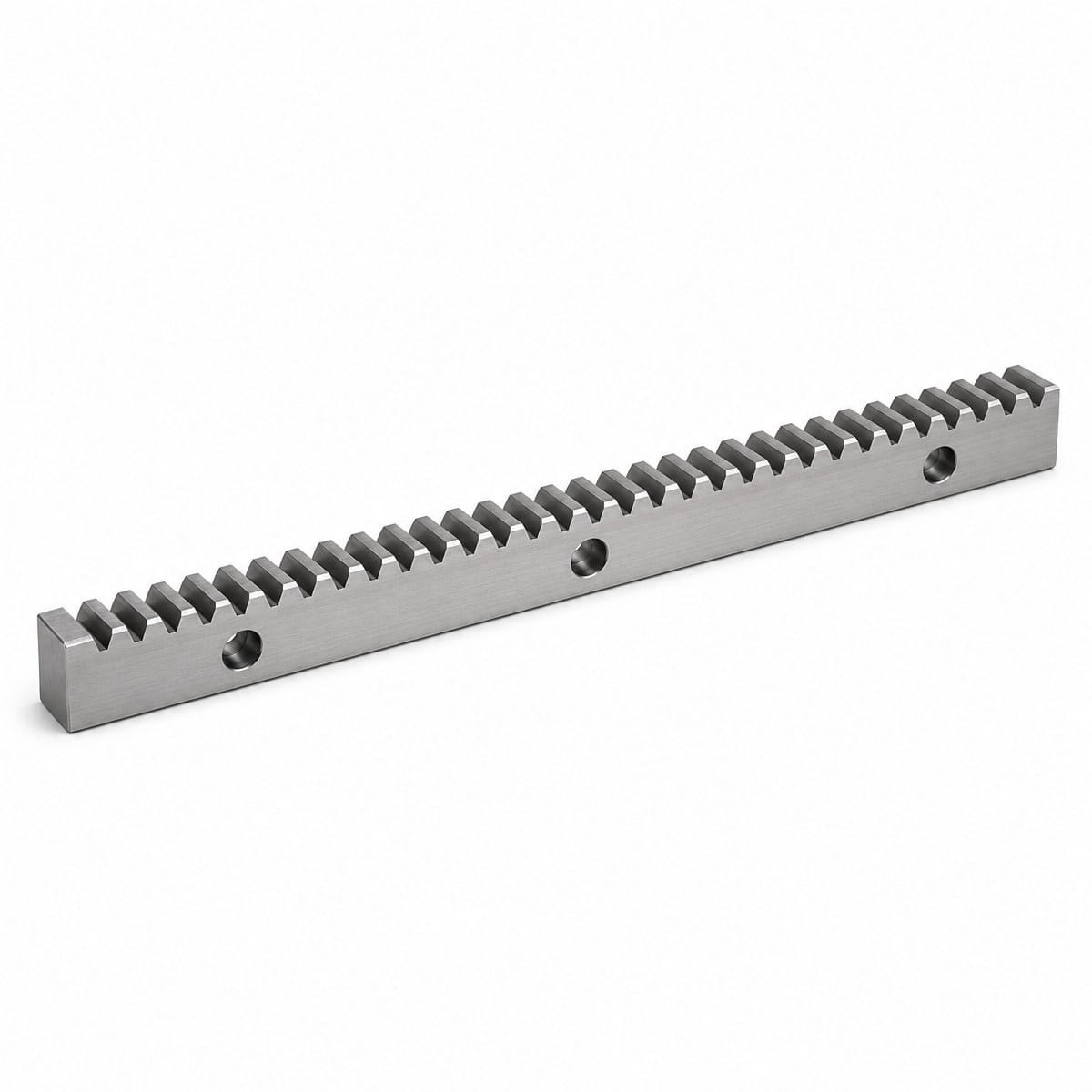

Precision spur and helical gear racks for long-stroke linear motion. Company product information supports modules M1 to M12, lengths such as 500/1000/2000 mm and DIN precision grades. This page is prepared for model identification, preliminary selection and quotation. The exact production configuration should be confirmed before order placement.
38 standard modelsKey features
- Spur and helical tooth forms
- DIN accuracy options for precision motion
- Heat treatment and surface treatment options
- Rack sections can be joined for long travel
Standard & custom
Stock standard sizes plus drawing-based variants.
Matched supply
Mating parts supplied together to guarantee fit.
Inspected before shipment
Critical dimensions checked; reports on request.
Specifications
Models & specifications
Values are nominal; confirm final dimensions against the approved drawing.
| Model | Tooth Type | Module | Precision | Length | Pressure Angle | Material | Helix Angle |
|---|---|---|---|---|---|---|---|
| KDI-SR-M6-DIN7-1000 | Spur | M6 | DIN7 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | - |
| KDI-HR-M6-DIN7-1000 | Helical | M6 | DIN7 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | 19°31′42″ reference / custom |
| KDI-SR-M6-DIN5-1000 | Spur | M6 | DIN5 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | - |
| KDI-HR-M6-DIN5-1000 | Helical | M6 | DIN5 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | 19°31′42″ reference / custom |
| KDI-SR-M5-DIN7-1000 | Spur | M5 | DIN7 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | - |
| KDI-HR-M5-DIN7-1000 | Helical | M5 | DIN7 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | 19°31′42″ reference / custom |
| KDI-SR-M5-DIN5-1000 | Spur | M5 | DIN5 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | - |
| KDI-HR-M5-DIN5-1000 | Helical | M5 | DIN5 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | 19°31′42″ reference / custom |
| KDI-SR-M4-DIN7-1000 | Spur | M4 | DIN7 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | - |
| KDI-HR-M4-DIN7-1000 | Helical | M4 | DIN7 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | 19°31′42″ reference / custom |
| KDI-SR-M4-DIN5-1000 | Spur | M4 | DIN5 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | - |
| KDI-HR-M4-DIN5-1000 | Helical | M4 | DIN5 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | 19°31′42″ reference / custom |
| KDI-SR-M3-DIN7-1000 | Spur | M3 | DIN7 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | - |
| KDI-HR-M3-DIN7-1000 | Helical | M3 | DIN7 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | 19°31′42″ reference / custom |
| KDI-SR-M3-DIN5-1000 | Spur | M3 | DIN5 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | - |
| KDI-HR-M3-DIN5-1000 | Helical | M3 | DIN5 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | 19°31′42″ reference / custom |
| KDI-SR-M2.5-DIN7-1000 | Spur | M2.5 | DIN7 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | - |
| KDI-HR-M2.5-DIN7-1000 | Helical | M2.5 | DIN7 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | 19°31′42″ reference / custom |
| KDI-SR-M2.5-DIN5-1000 | Spur | M2.5 | DIN5 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | - |
| KDI-HR-M2.5-DIN5-1000 | Helical | M2.5 | DIN5 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | 19°31′42″ reference / custom |
| KDI-SR-M2-DIN7-1000 | Spur | M2 | DIN7 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | - |
| KDI-HR-M2-DIN7-1000 | Helical | M2 | DIN7 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | 19°31′42″ reference / custom |
| KDI-SR-M2-DIN5-1000 | Spur | M2 | DIN5 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | - |
| KDI-HR-M2-DIN5-1000 | Helical | M2 | DIN5 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | 19°31′42″ reference / custom |
| KDI-SR-M1.5-DIN7-1000 | Spur | M1.5 | DIN7 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | - |
| KDI-HR-M1.5-DIN7-1000 | Helical | M1.5 | DIN7 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | 19°31′42″ reference / custom |
| KDI-SR-M1.5-DIN5-1000 | Spur | M1.5 | DIN5 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | - |
| KDI-HR-M1.5-DIN5-1000 | Helical | M1.5 | DIN5 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | 19°31′42″ reference / custom |
| KDI-SR-M1.25-DIN7-1000 | Spur | M1.25 | DIN7 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | - |
| KDI-HR-M1.25-DIN7-1000 | Helical | M1.25 | DIN7 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | 19°31′42″ reference / custom |
| KDI-SR-M1.25-DIN5-1000 | Spur | M1.25 | DIN5 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | - |
| KDI-HR-M1.25-DIN5-1000 | Helical | M1.25 | DIN5 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | 19°31′42″ reference / custom |
| KDI-SR-M1-DIN7-1000 | Spur | M1 | DIN7 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | - |
| KDI-HR-M1-DIN7-1000 | Helical | M1 | DIN7 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | 19°31′42″ reference / custom |
| KDI-SR-M1-DIN5-1000 | Spur | M1 | DIN5 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | - |
| KDI-HR-M1-DIN5-1000 | Helical | M1 | DIN5 | 1000 mm | 20° | C45 / 42CrMo / 16MnCr5 / 20CrMnTi | 19°31′42″ reference / custom |
Typical applications
CNC machinesAutomation gantriesLaser and cutting equipmentMaterial handling systems
Selection guide
- Confirm the transmission type, load, speed and duty cycle.
- Choose model / module / pitch and the matching mating part (chain–sprocket, rack–pinion, belt–pulley, rail–block).
- Specify bore, keyway, length, material, heat treatment and surface finish.
- Send drawings or samples for non-standard parts; we confirm feasibility and quote.
