Bevel Gears
Gear, Rack & Synchronous Drive Series
Product overview

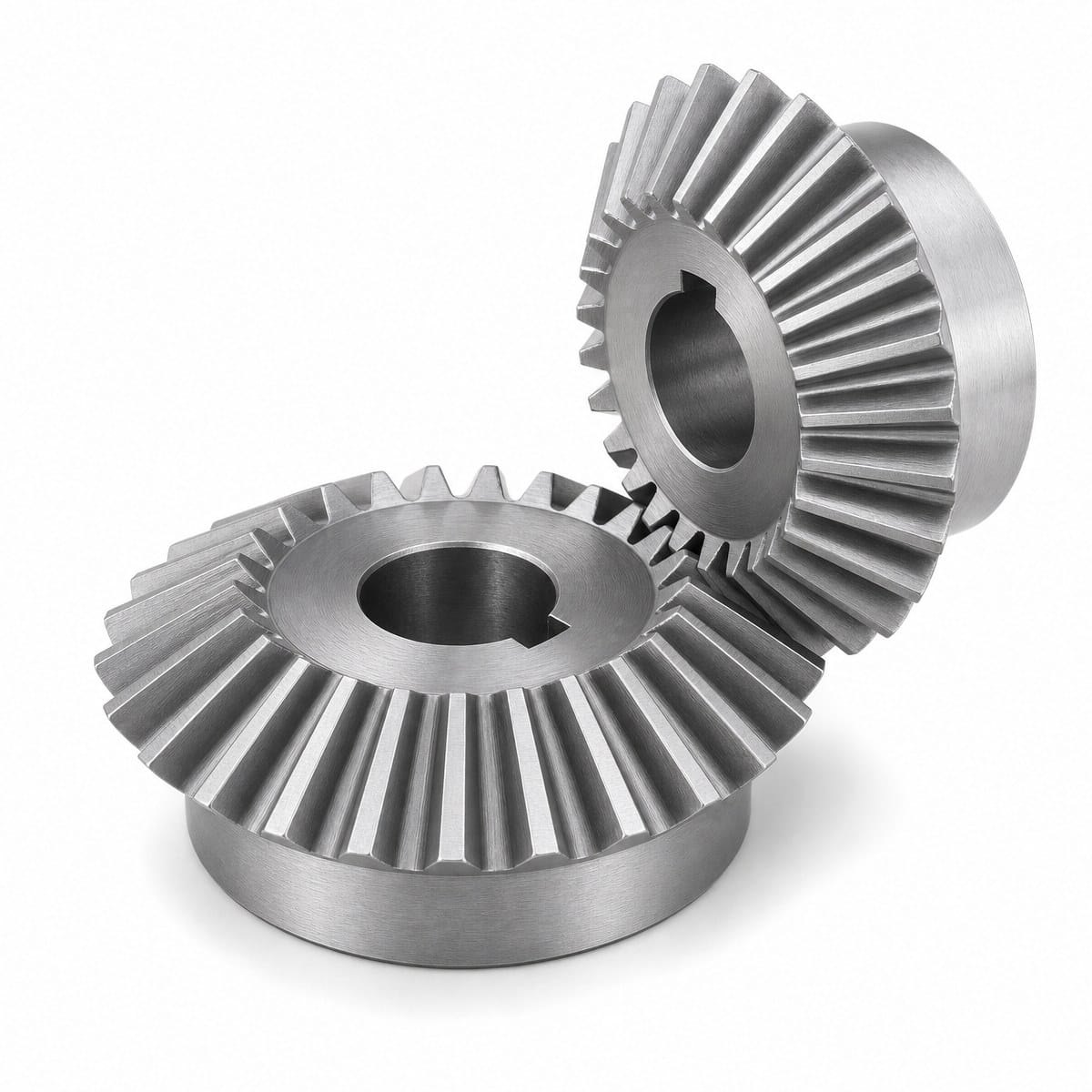

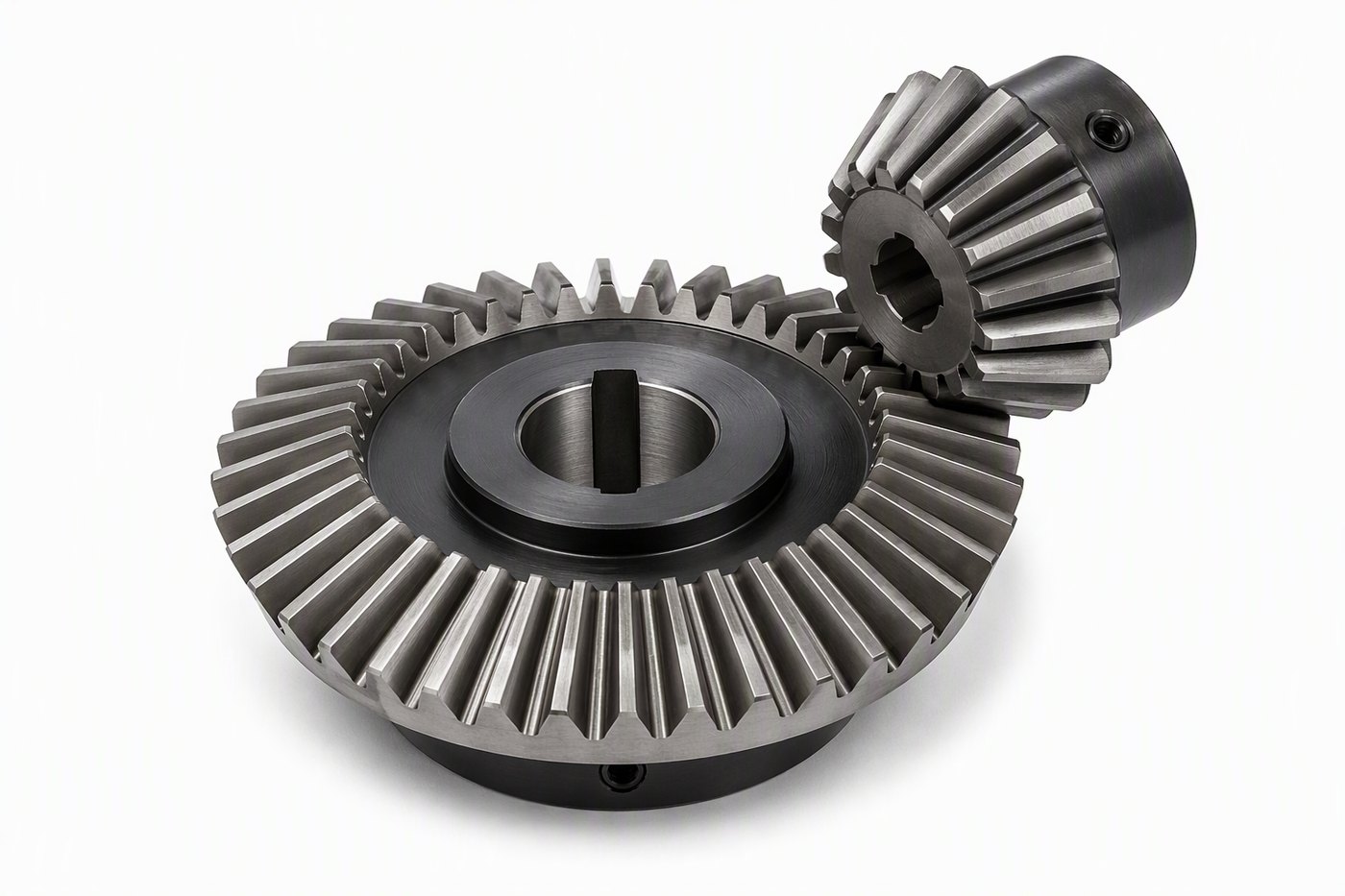

Straight bevel gear sets for intersecting shafts, commonly configured for 90-degree power transmission. This page is prepared for model identification, preliminary selection and quotation. The exact production configuration should be confirmed before order placement.
15 standard modelsKey features
- Matched pinion and gear sets
- Standard and custom ratios
- C45/alloy-steel options
- Machined bore, keyway and hub options
Standard & custom
Stock standard sizes plus drawing-based variants.
Matched supply
Mating parts supplied together to guarantee fit.
Inspected before shipment
Critical dimensions checked; reports on request.
Specifications
Models & specifications
Values are nominal; confirm final dimensions against the approved drawing.
| Model | Module | Ratio | Pinion Teeth | Gear Teeth | Shaft Angle |
|---|---|---|---|---|---|
| BEV-M3-Z20-60 | 3 | 1:3 | 20 | 60 | 90° reference |
| BEV-M3-Z20-40 | 3 | 1:2 | 20 | 40 | 90° reference |
| BEV-M3-Z20-20 | 3 | 1:1 | 20 | 20 | 90° reference |
| BEV-M2.5-Z20-60 | 2.5 | 1:3 | 20 | 60 | 90° reference |
| BEV-M2.5-Z20-40 | 2.5 | 1:2 | 20 | 40 | 90° reference |
| BEV-M2.5-Z20-20 | 2.5 | 1:1 | 20 | 20 | 90° reference |
| BEV-M2-Z20-60 | 2 | 1:3 | 20 | 60 | 90° reference |
| BEV-M2-Z20-40 | 2 | 1:2 | 20 | 40 | 90° reference |
| BEV-M2-Z20-20 | 2 | 1:1 | 20 | 20 | 90° reference |
| BEV-M1.5-Z20-60 | 1.5 | 1:3 | 20 | 60 | 90° reference |
| BEV-M1.5-Z20-40 | 1.5 | 1:2 | 20 | 40 | 90° reference |
| BEV-M1.5-Z20-20 | 1.5 | 1:1 | 20 | 20 | 90° reference |
| BEV-M1-Z20-60 | 1 | 1:3 | 20 | 60 | 90° reference |
| BEV-M1-Z20-40 | 1 | 1:2 | 20 | 40 | 90° reference |
| BEV-M1-Z20-20 | 1 | 1:1 | 20 | 20 | 90° reference |
Typical applications
Right-angle gearboxesMachine toolsAgricultural machineryAutomation equipment
Selection guide
- Confirm the transmission type, load, speed and duty cycle.
- Choose model / module / pitch and the matching mating part (chain–sprocket, rack–pinion, belt–pulley, rail–block).
- Specify bore, keyway, length, material, heat treatment and surface finish.
- Send drawings or samples for non-standard parts; we confirm feasibility and quote.
Have a drawing, sample or model number?
Send it to our engineering team — we confirm the specification and reply with a quotation.
