V Belt Pulley
Gear, Rack & Synchronous Drive Series
Product overview

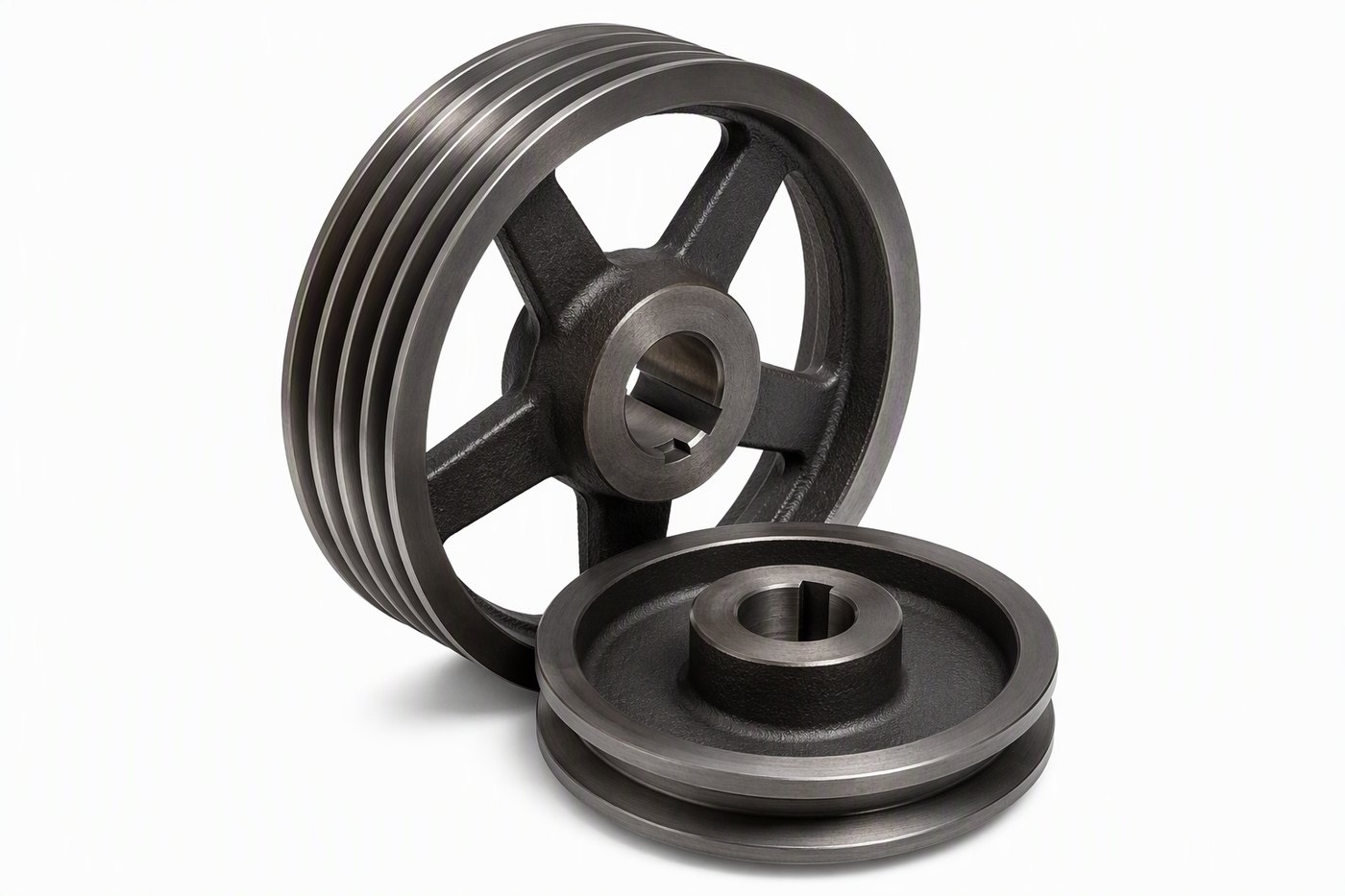

V-belt pulleys for classical and narrow V-belt profiles, available with multiple grooves and taper-bore or finished-bore mounting. This page is prepared for model identification, preliminary selection and quotation. The exact production configuration should be confirmed before order placement.
24 standard modelsKey features
- Classical A/B/C and SPA/SPB/SPC profile options

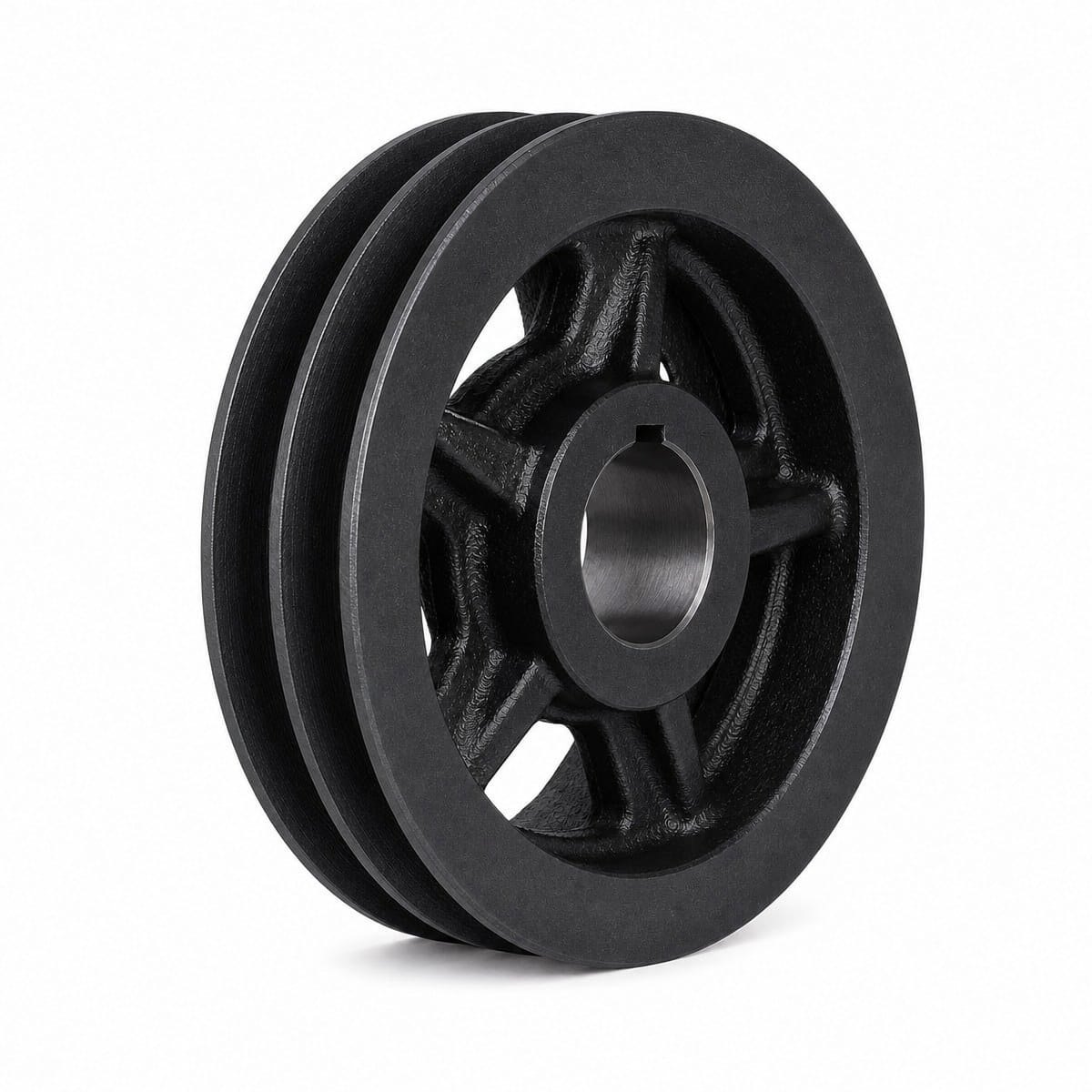

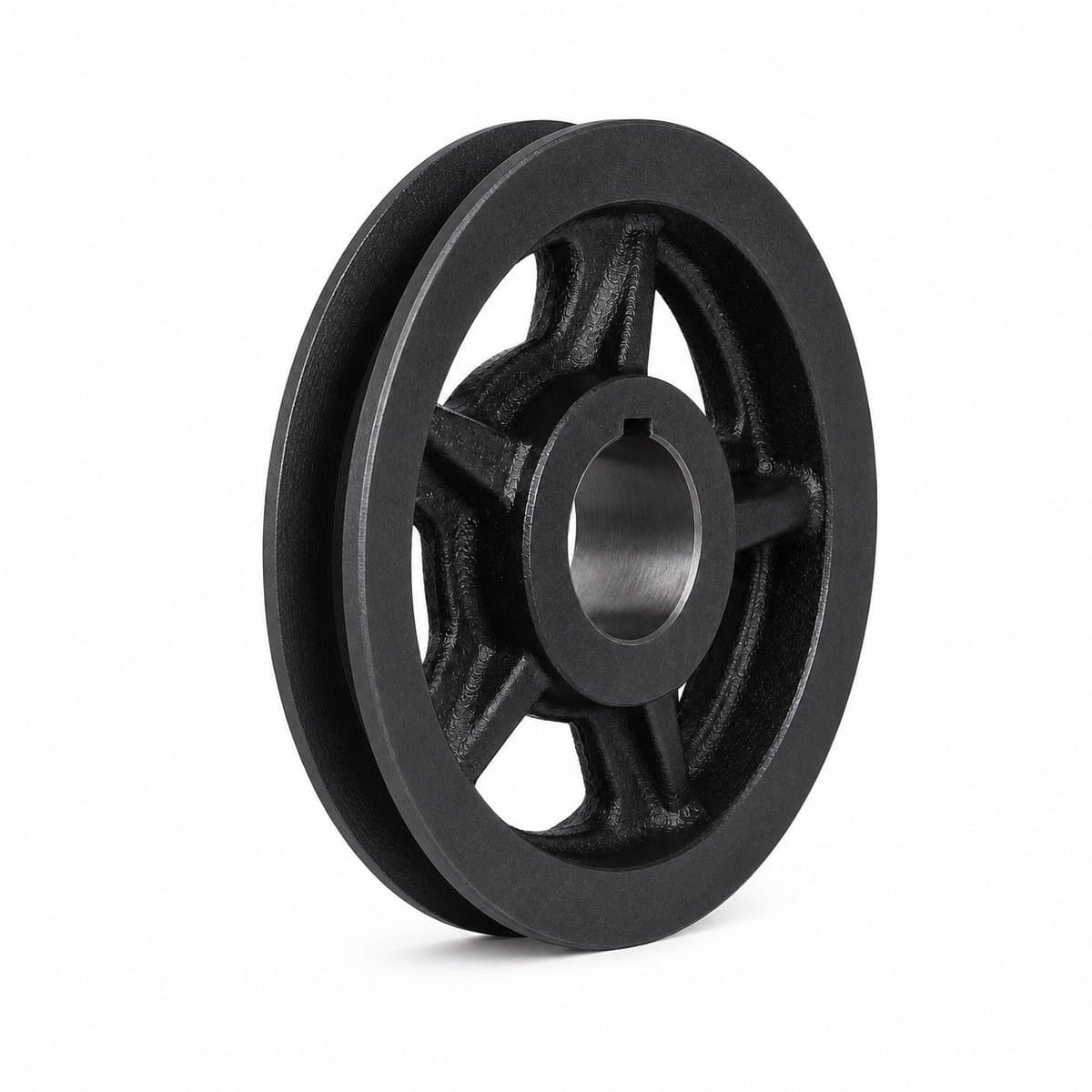

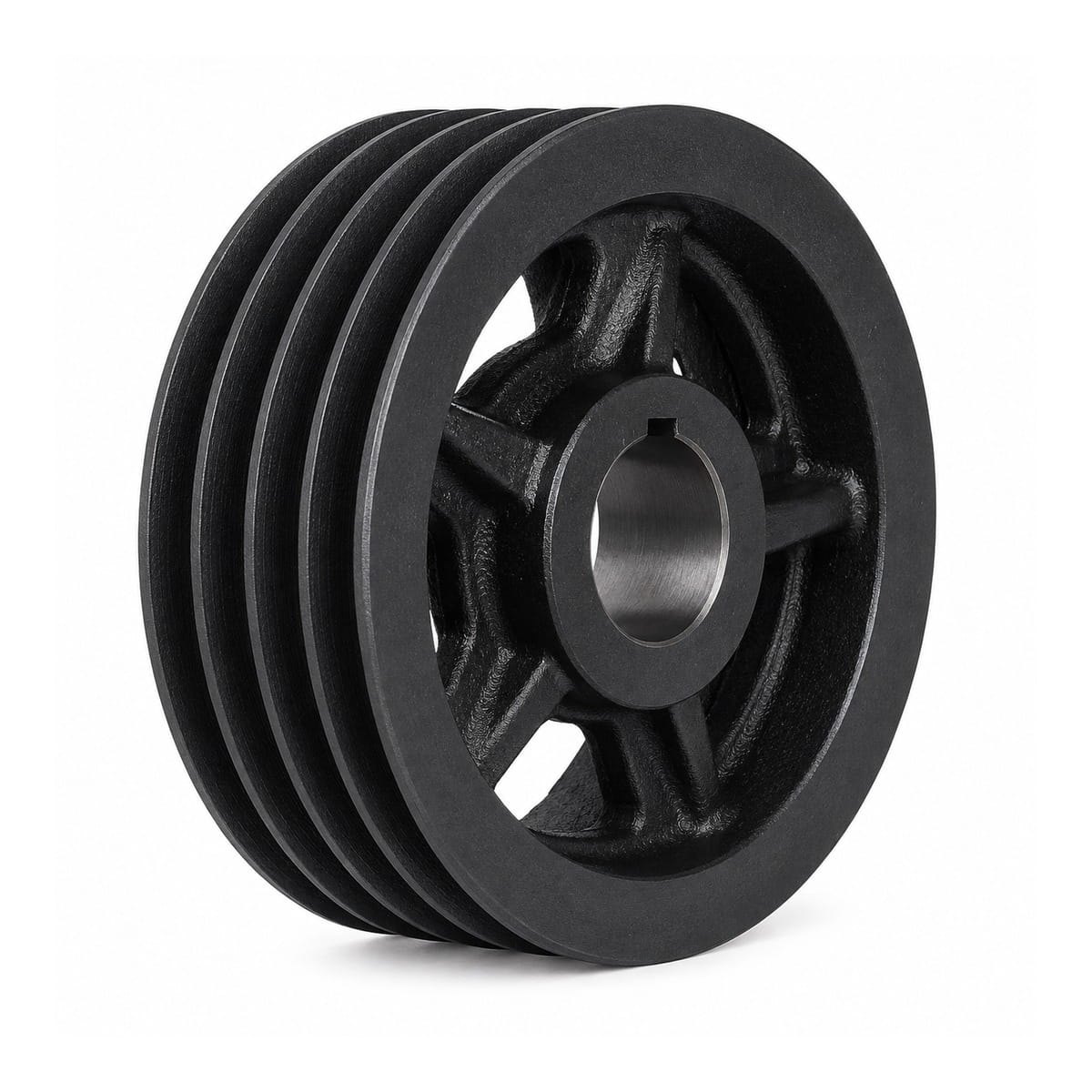

- Single and multi-groove designs
- Cast iron or steel options
- Taper-bore or custom finished bore
Standard & custom
Stock standard sizes plus drawing-based variants.
Matched supply
Mating parts supplied together to guarantee fit.
Inspected before shipment
Critical dimensions checked; reports on request.
Specifications
Models & specifications
Values are nominal; confirm final dimensions against the approved drawing.
| Model | Profile | Grooves | Material | Bore |
|---|---|---|---|---|
| VP-SPC-4G | SPC | 4 | Cast iron / C45 steel | Taper bore / finished bore |
| VP-SPC-3G | SPC | 3 | Cast iron / C45 steel | Taper bore / finished bore |
| VP-SPC-2G | SPC | 2 | Cast iron / C45 steel | Taper bore / finished bore |
| VP-SPC-1G | SPC | 1 | Cast iron / C45 steel | Taper bore / finished bore |
| VP-SPB-4G | SPB | 4 | Cast iron / C45 steel | Taper bore / finished bore |
| VP-SPB-3G | SPB | 3 | Cast iron / C45 steel | Taper bore / finished bore |
| VP-SPB-2G | SPB | 2 | Cast iron / C45 steel | Taper bore / finished bore |
| VP-SPB-1G | SPB | 1 | Cast iron / C45 steel | Taper bore / finished bore |
| VP-SPA-4G | SPA | 4 | Cast iron / C45 steel | Taper bore / finished bore |
| VP-SPA-3G | SPA | 3 | Cast iron / C45 steel | Taper bore / finished bore |
| VP-SPA-2G | SPA | 2 | Cast iron / C45 steel | Taper bore / finished bore |
| VP-SPA-1G | SPA | 1 | Cast iron / C45 steel | Taper bore / finished bore |
| VP-C-4G | C | 4 | Cast iron / C45 steel | Taper bore / finished bore |
| VP-C-3G | C | 3 | Cast iron / C45 steel | Taper bore / finished bore |
| VP-C-2G | C | 2 | Cast iron / C45 steel | Taper bore / finished bore |
| VP-C-1G | C | 1 | Cast iron / C45 steel | Taper bore / finished bore |
| VP-B-4G | B | 4 | Cast iron / C45 steel | Taper bore / finished bore |
| VP-B-3G | B | 3 | Cast iron / C45 steel | Taper bore / finished bore |
| VP-B-2G | B | 2 | Cast iron / C45 steel | Taper bore / finished bore |
| VP-B-1G | B | 1 | Cast iron / C45 steel | Taper bore / finished bore |
| VP-A-4G | A | 4 | Cast iron / C45 steel | Taper bore / finished bore |
| VP-A-3G | A | 3 | Cast iron / C45 steel | Taper bore / finished bore |
| VP-A-2G | A | 2 | Cast iron / C45 steel | Taper bore / finished bore |
| VP-A-1G | A | 1 | Cast iron / C45 steel | Taper bore / finished bore |
Typical applications
Fans and pumpsCompressorsAgricultural equipmentIndustrial machinery
Selection guide
- Confirm the transmission type, load, speed and duty cycle.
- Choose model / module / pitch and the matching mating part (chain–sprocket, rack–pinion, belt–pulley, rail–block).
- Specify bore, keyway, length, material, heat treatment and surface finish.
- Send drawings or samples for non-standard parts; we confirm feasibility and quote.
Have a drawing, sample or model number?
Send it to our engineering team — we confirm the specification and reply with a quotation.
