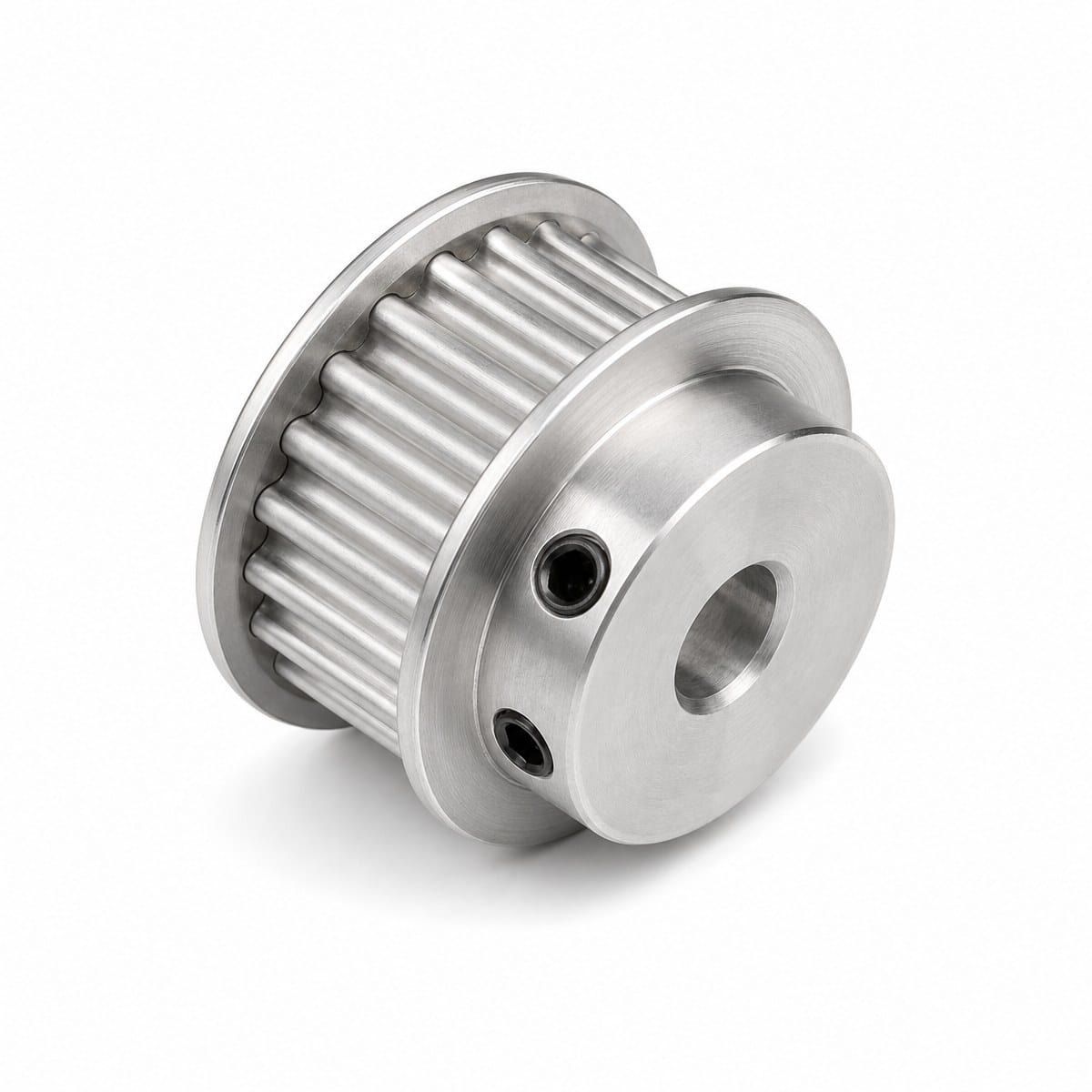

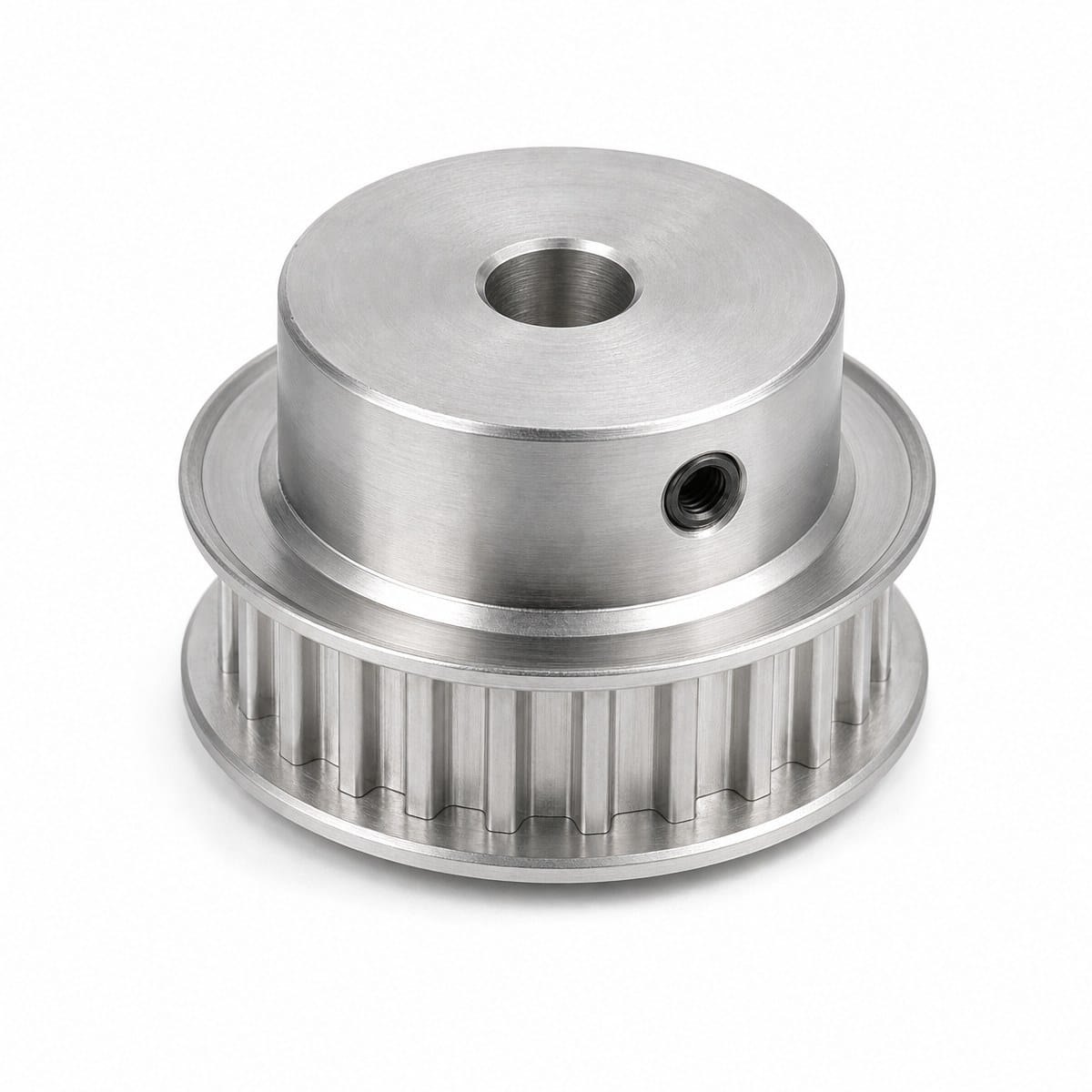

Timing Pulleys
Gear, Rack & Synchronous Drive Series
Product overview
Synchronous timing pulleys for positive, slip-free belt transmission across trapezoidal, metric and HTD/curvilinear tooth profiles. This page is prepared for model identification, preliminary selection and quotation. The exact production configuration should be confirmed before order placement.
36 standard modelsKey features
- Multiple pitch/tooth profiles
- Aluminum, C45 steel and stainless options
- Pilot, taper-bore and finished-bore styles
- Flanged and unflanged configurations
Standard & custom
Stock standard sizes plus drawing-based variants.
Matched supply
Mating parts supplied together to guarantee fit.
Inspected before shipment
Critical dimensions checked; reports on request.
Specifications
Models & specifications
Values are nominal; confirm final dimensions against the approved drawing.
| Model | Profile | Pitch | Teeth | Material | Bore |
|---|---|---|---|---|---|
| XL-40T | XL | 5.08 mm | 40 | Aluminum / steel | Pilot / finished / taper bore |
| XL-30T | XL | 5.08 mm | 30 | Aluminum / steel | Pilot / finished / taper bore |
| XL-20T | XL | 5.08 mm | 20 | Aluminum / steel | Pilot / finished / taper bore |
| T5-40T | T5 | 5 mm | 40 | Aluminum / steel | Pilot / finished / taper bore |
| T5-30T | T5 | 5 mm | 30 | Aluminum / steel | Pilot / finished / taper bore |
| T5-20T | T5 | 5 mm | 20 | Aluminum / steel | Pilot / finished / taper bore |
| T10-40T | T10 | 10 mm | 40 | C45 steel / aluminum | Pilot / finished / taper bore |
| T10-30T | T10 | 10 mm | 30 | C45 steel / aluminum | Pilot / finished / taper bore |
| T10-20T | T10 | 10 mm | 20 | C45 steel / aluminum | Pilot / finished / taper bore |
| MXL-40T | MXL | 2.032 mm | 40 | Aluminum / steel | Pilot / finished / taper bore |
| MXL-30T | MXL | 2.032 mm | 30 | Aluminum / steel | Pilot / finished / taper bore |
| MXL-20T | MXL | 2.032 mm | 20 | Aluminum / steel | Pilot / finished / taper bore |
| L-40T | L | 9.525 mm | 40 | C45 steel / aluminum | Pilot / finished / taper bore |
| L-30T | L | 9.525 mm | 30 | C45 steel / aluminum | Pilot / finished / taper bore |
| L-20T | L | 9.525 mm | 20 | C45 steel / aluminum | Pilot / finished / taper bore |
| HTD8M-40T | HTD8M | 8 mm | 40 | Aluminum / steel | Pilot / finished / taper bore |
| HTD8M-30T | HTD8M | 8 mm | 30 | Aluminum / steel | Pilot / finished / taper bore |
| HTD8M-20T | HTD8M | 8 mm | 20 | Aluminum / steel | Pilot / finished / taper bore |
| HTD5M-40T | HTD5M | 5 mm | 40 | Aluminum / steel | Pilot / finished / taper bore |
| HTD5M-30T | HTD5M | 5 mm | 30 | Aluminum / steel | Pilot / finished / taper bore |
| HTD5M-20T | HTD5M | 5 mm | 20 | Aluminum / steel | Pilot / finished / taper bore |
| HTD3M-40T | HTD3M | 3 mm | 40 | Aluminum / steel | Pilot / finished / taper bore |
| HTD3M-30T | HTD3M | 3 mm | 30 | Aluminum / steel | Pilot / finished / taper bore |
| HTD3M-20T | HTD3M | 3 mm | 20 | Aluminum / steel | Pilot / finished / taper bore |
| HTD14M-40T | HTD14M | 14 mm | 40 | C45 steel / aluminum | Pilot / finished / taper bore |
| HTD14M-30T | HTD14M | 14 mm | 30 | C45 steel / aluminum | Pilot / finished / taper bore |
| HTD14M-20T | HTD14M | 14 mm | 20 | C45 steel / aluminum | Pilot / finished / taper bore |
| H-40T | H | 12.7 mm | 40 | C45 steel / aluminum | Pilot / finished / taper bore |
| H-30T | H | 12.7 mm | 30 | C45 steel / aluminum | Pilot / finished / taper bore |
| H-20T | H | 12.7 mm | 20 | C45 steel / aluminum | Pilot / finished / taper bore |
| AT5-40T | AT5 | 5 mm | 40 | Aluminum / steel | Pilot / finished / taper bore |
| AT5-30T | AT5 | 5 mm | 30 | Aluminum / steel | Pilot / finished / taper bore |
| AT5-20T | AT5 | 5 mm | 20 | Aluminum / steel | Pilot / finished / taper bore |
| AT10-40T | AT10 | 10 mm | 40 | C45 steel / aluminum | Pilot / finished / taper bore |
| AT10-30T | AT10 | 10 mm | 30 | C45 steel / aluminum | Pilot / finished / taper bore |
| AT10-20T | AT10 | 10 mm | 20 | C45 steel / aluminum | Pilot / finished / taper bore |
Typical applications
Automation equipmentPackaging machineryRoboticsMachine tools
Selection guide
- Confirm the transmission type, load, speed and duty cycle.
- Choose model / module / pitch and the matching mating part (chain–sprocket, rack–pinion, belt–pulley, rail–block).
- Specify bore, keyway, length, material, heat treatment and surface finish.
- Send drawings or samples for non-standard parts; we confirm feasibility and quote.
Have a drawing, sample or model number?
Send it to our engineering team — we confirm the specification and reply with a quotation.
