Drive Chains
Chain Drive Series

Product overview

Short-pitch precision roller chains for industrial power transmission, available in ISO/DIN B-series and ANSI-style sizes with simplex, duplex and triplex constructions. This page is prepared for model identification, preliminary selection and quotation. The exact production configuration should be confirmed before order placement.

30 standard models

Key features

  • Standardized pitch design for reliable sprocket engagement

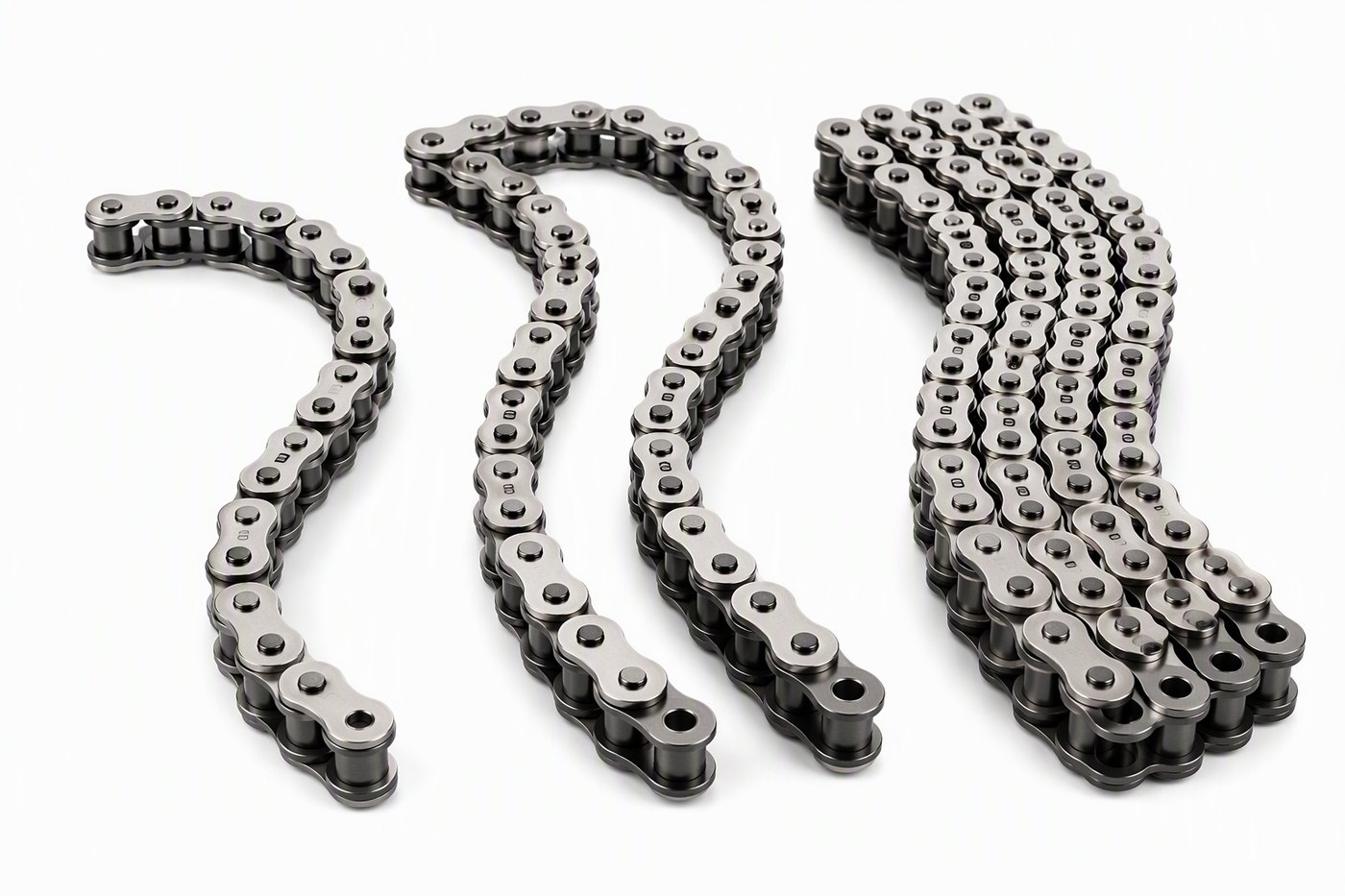

  • Simplex, duplex and triplex configurations
  • Carbon steel, stainless steel and plated options available
  • Connecting links and offset links available for maintenance
Send inquiryAll models

Standard & custom

Stock standard sizes plus drawing-based variants.

Matched supply

Mating parts supplied together to guarantee fit.

Inspected before shipment

Critical dimensions checked; reports on request.

Specifications

Models & specifications

Values are nominal; confirm final dimensions against the approved drawing.

ModelStandardPitchRowsMaterial
60ANSI / A Series19.05 mmSimplexCarbon steel / stainless option
50ANSI / A Series15.875 mmSimplexCarbon steel / stainless option
40ANSI / A Series12.7 mmSimplexCarbon steel / stainless option
32B-3ISO / DIN B Series50.8 mmTriplexCarbon steel / stainless option
32B-2ISO / DIN B Series50.8 mmDuplexCarbon steel / stainless option
32B-1ISO / DIN B Series50.8 mmSimplexCarbon steel / stainless option
28B-3ISO / DIN B Series44.45 mmTriplexCarbon steel / stainless option
28B-2ISO / DIN B Series44.45 mmDuplexCarbon steel / stainless option
28B-1ISO / DIN B Series44.45 mmSimplexCarbon steel / stainless option
24B-3ISO / DIN B Series38.1 mmTriplexCarbon steel / stainless option
24B-2ISO / DIN B Series38.1 mmDuplexCarbon steel / stainless option
24B-1ISO / DIN B Series38.1 mmSimplexCarbon steel / stainless option
20B-3ISO / DIN B Series31.75 mmTriplexCarbon steel / stainless option
20B-2ISO / DIN B Series31.75 mmDuplexCarbon steel / stainless option
20B-1ISO / DIN B Series31.75 mmSimplexCarbon steel / stainless option
16B-3ISO / DIN B Series25.4 mmTriplexCarbon steel / stainless option
16B-2ISO / DIN B Series25.4 mmDuplexCarbon steel / stainless option
16B-1ISO / DIN B Series25.4 mmSimplexCarbon steel / stainless option
12B-3ISO / DIN B Series19.05 mmTriplexCarbon steel / stainless option
12B-2ISO / DIN B Series19.05 mmDuplexCarbon steel / stainless option
12B-1ISO / DIN B Series19.05 mmSimplexCarbon steel / stainless option
10B-3ISO / DIN B Series15.875 mmTriplexCarbon steel / stainless option
10B-2ISO / DIN B Series15.875 mmDuplexCarbon steel / stainless option
10B-1ISO / DIN B Series15.875 mmSimplexCarbon steel / stainless option
08B-3ISO / DIN B Series12.7 mmTriplexCarbon steel / stainless option
08B-2ISO / DIN B Series12.7 mmDuplexCarbon steel / stainless option
08B-1ISO / DIN B Series12.7 mmSimplexCarbon steel / stainless option
06B-3ISO / DIN B Series9.525 mmTriplexCarbon steel / stainless option
06B-2ISO / DIN B Series9.525 mmDuplexCarbon steel / stainless option
06B-1ISO / DIN B Series9.525 mmSimplexCarbon steel / stainless option

Typical applications

Industrial drivesConveyors and packaging equipmentMachine toolsAgricultural and general machinery

Selection guide

  • Confirm the transmission type, load, speed and duty cycle.
  • Choose model / module / pitch and the matching mating part (chain–sprocket, rack–pinion, belt–pulley, rail–block).
  • Specify bore, keyway, length, material, heat treatment and surface finish.
  • Send drawings or samples for non-standard parts; we confirm feasibility and quote.
