Conveyor Chains
Chain Drive Series
Product overview

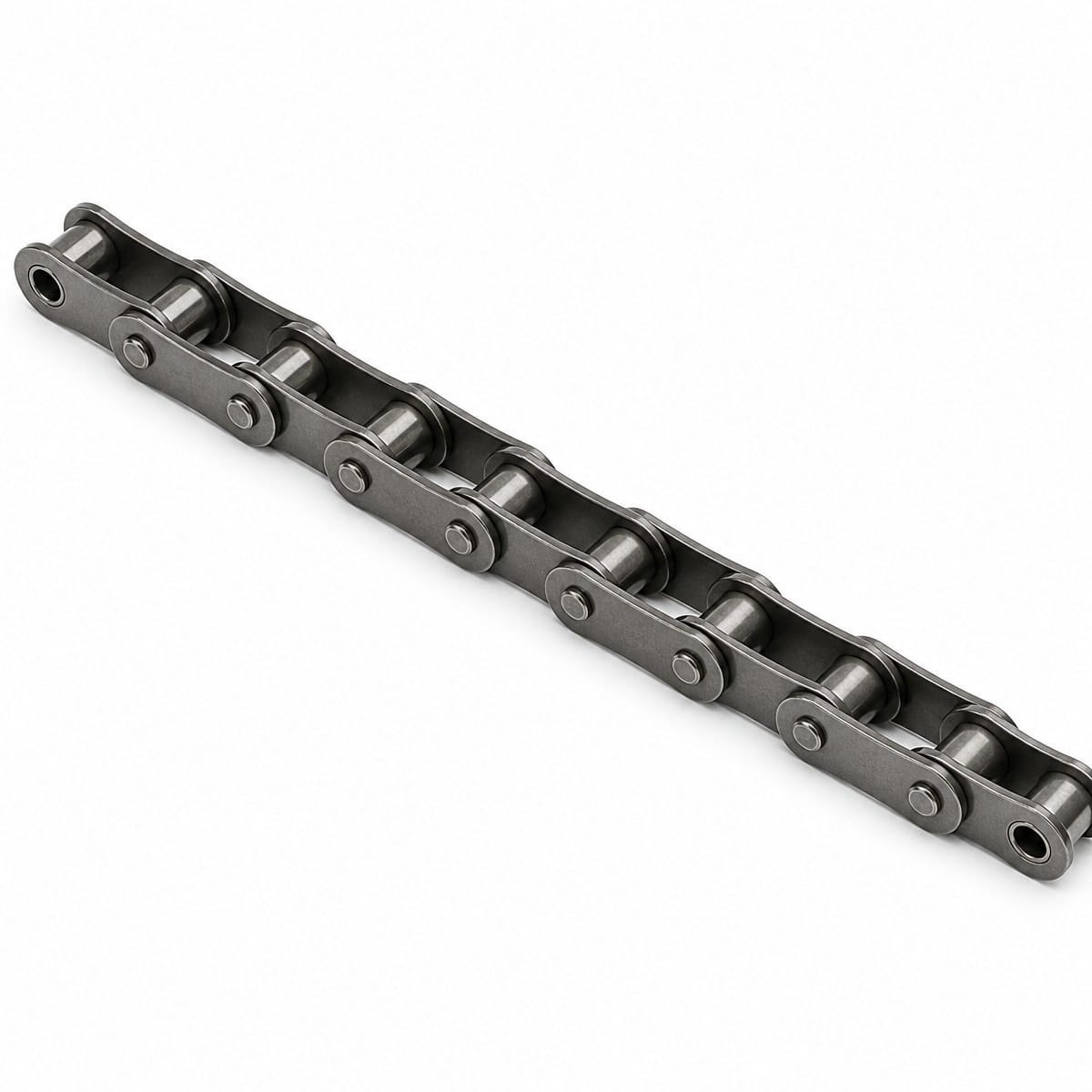

Conveyor chains for material handling and extended-pitch applications, including double-pitch roller chains and attachment configurations. This page is prepared for model identification, preliminary selection and quotation. The exact production configuration should be confirmed before order placement.
20 standard modelsKey features
- Extended pitch for conveyor layouts
- Standard, heavy-duty and stainless configurations

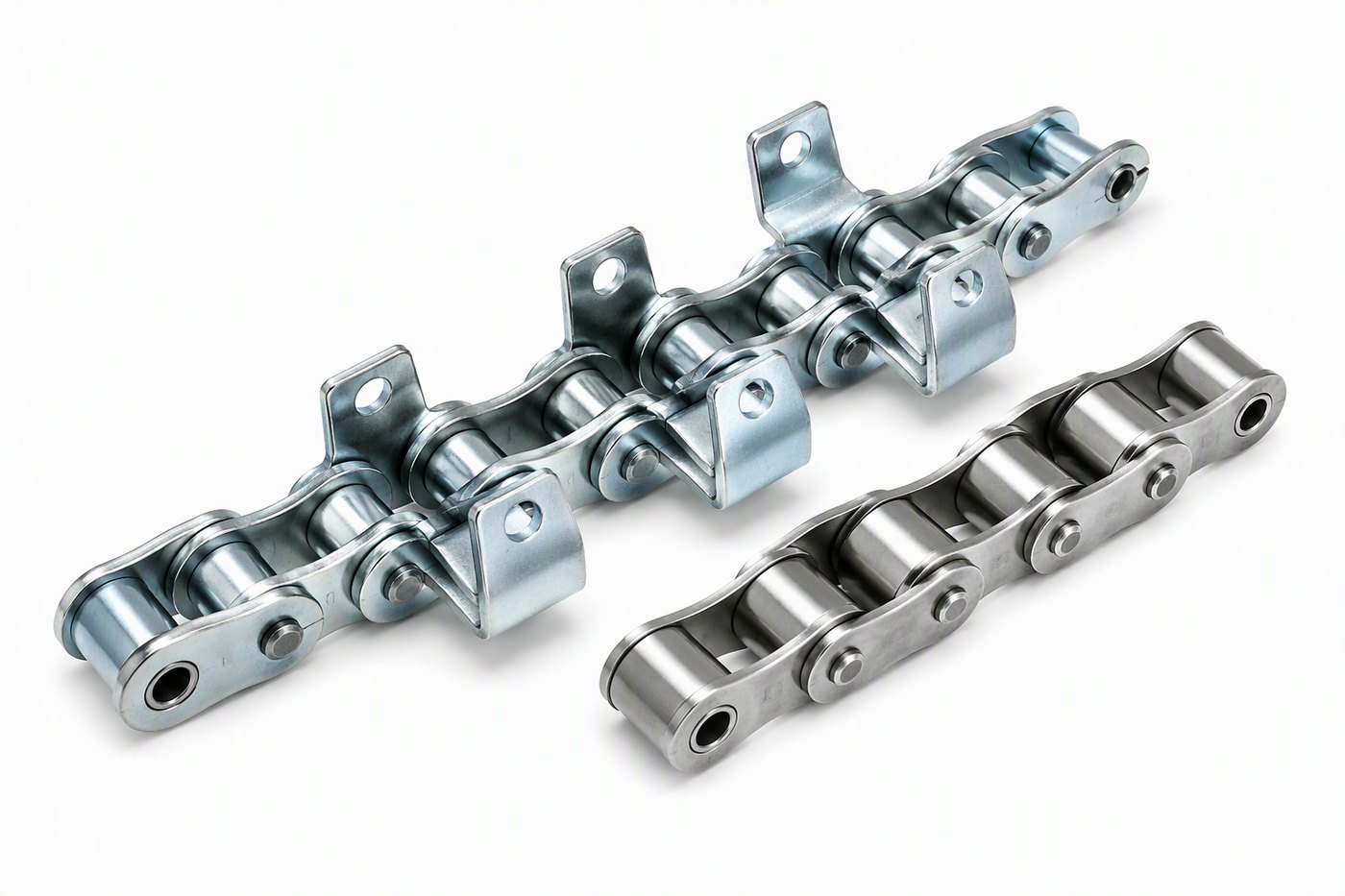

- Attachment options for carriers, slats and fixtures
- Suitable for low-to-medium speed conveying
Standard & custom
Stock standard sizes plus drawing-based variants.
Matched supply
Mating parts supplied together to guarantee fit.
Inspected before shipment
Critical dimensions checked; reports on request.
Specifications
Models & specifications
Values are nominal; confirm final dimensions against the approved drawing.
| Model | Pitch | Configuration | Material | Attachment |
|---|---|---|---|---|
| C2100H-SS | 63.5 mm | Stainless | Stainless steel | None |

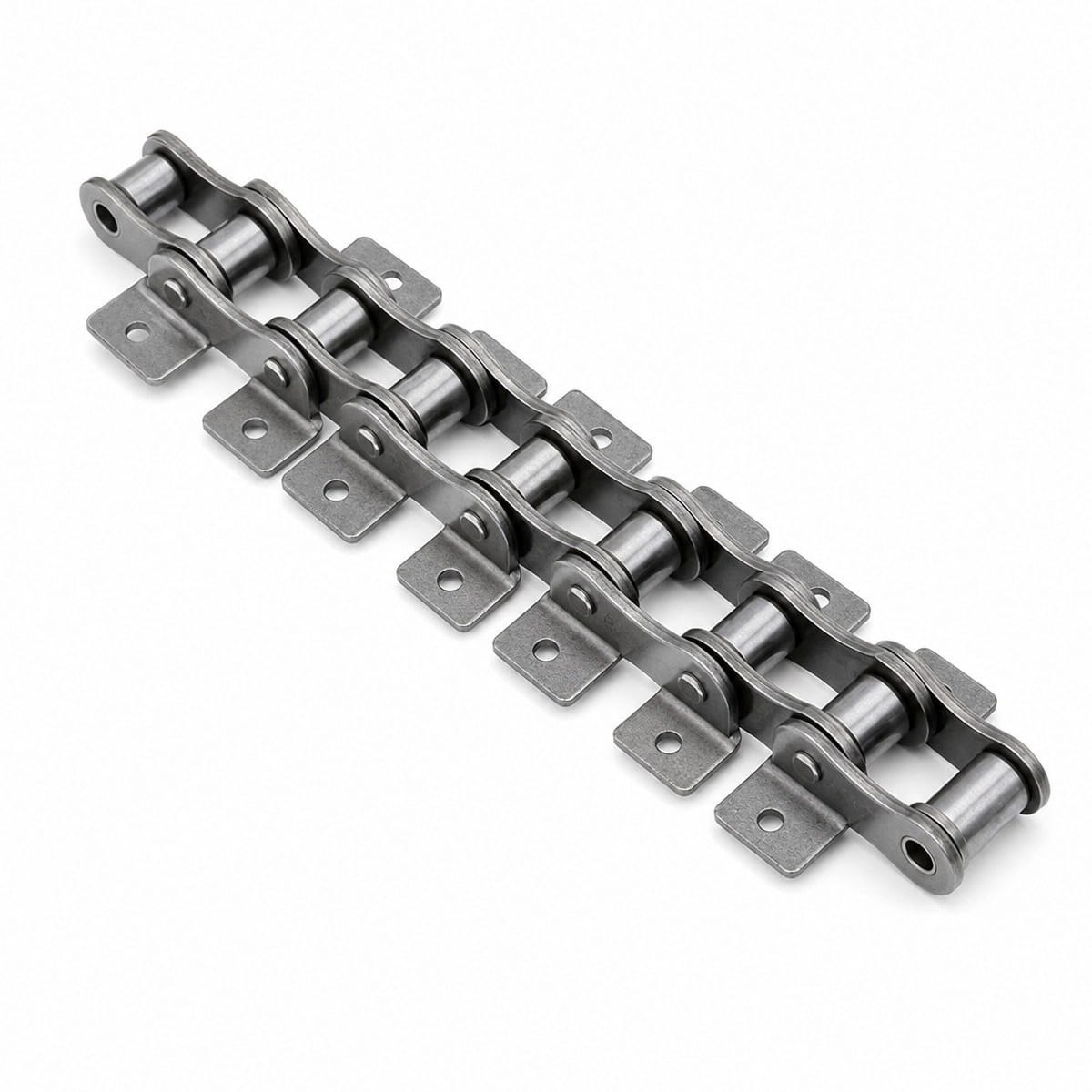

| C2100H-K1 | 63.5 mm | Attachment | Carbon steel | K1 |

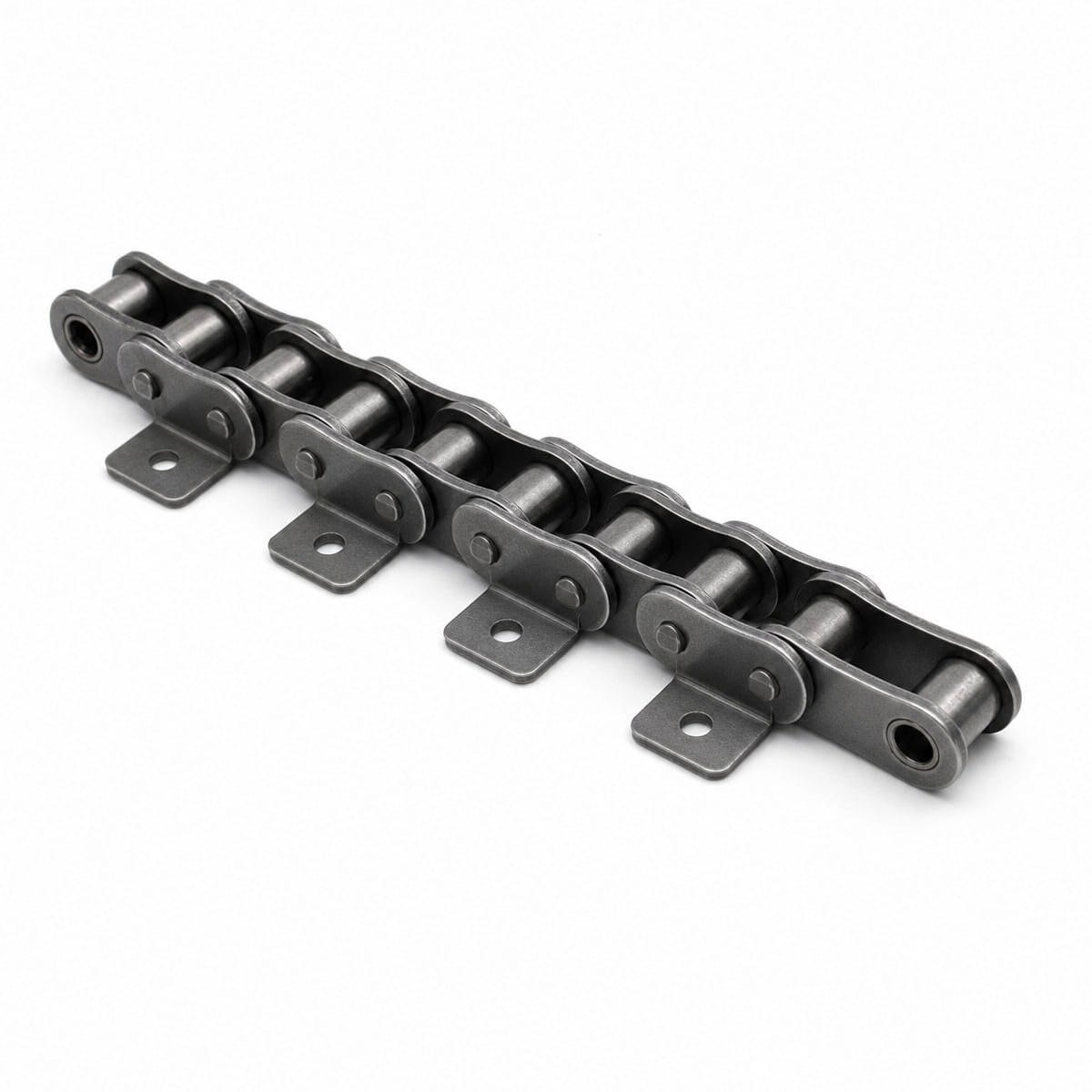

| C2100H-A1 | 63.5 mm | Attachment | Carbon steel | A1 |
| C2100H | 63.5 mm | Standard | Carbon steel | None |
| C2080H-SS | 50.8 mm | Stainless | Stainless steel | None |
| C2080H-K1 | 50.8 mm | Attachment | Carbon steel | K1 |
| C2080H-A1 | 50.8 mm | Attachment | Carbon steel | A1 |
| C2080H | 50.8 mm | Standard | Carbon steel | None |
| C2060H-SS | 38.1 mm | Stainless | Stainless steel | None |
| C2060H-K1 | 38.1 mm | Attachment | Carbon steel | K1 |
| C2060H-A1 | 38.1 mm | Attachment | Carbon steel | A1 |
| C2060H | 38.1 mm | Standard | Carbon steel | None |
| C2050-SS | 31.75 mm | Stainless | Stainless steel | None |
| C2050-K1 | 31.75 mm | Attachment | Carbon steel | K1 |
| C2050-A1 | 31.75 mm | Attachment | Carbon steel | A1 |
| C2050 | 31.75 mm | Standard | Carbon steel | None |
| C2040-SS | 25.4 mm | Stainless | Stainless steel | None |
| C2040-K1 | 25.4 mm | Attachment | Carbon steel | K1 |
| C2040-A1 | 25.4 mm | Attachment | Carbon steel | A1 |
| C2040 | 25.4 mm | Standard | Carbon steel | None |
Typical applications
Packaging linesAssembly conveyorsMaterial handlingFood and general industrial conveyors
Selection guide
- Confirm the transmission type, load, speed and duty cycle.
- Choose model / module / pitch and the matching mating part (chain–sprocket, rack–pinion, belt–pulley, rail–block).
- Specify bore, keyway, length, material, heat treatment and surface finish.
- Send drawings or samples for non-standard parts; we confirm feasibility and quote.
Have a drawing, sample or model number?
Send it to our engineering team — we confirm the specification and reply with a quotation.
