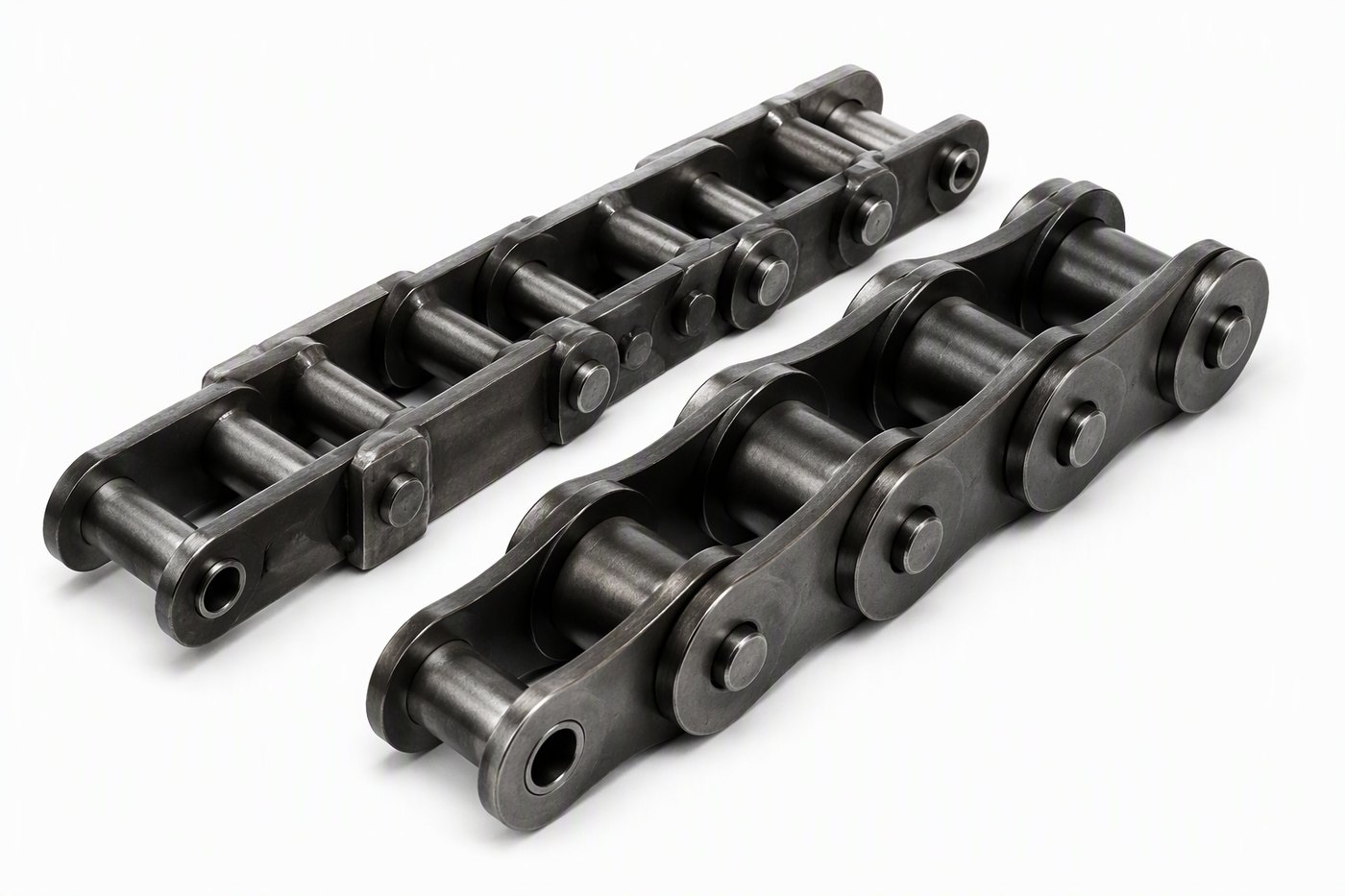

Engineering Chains
Chain Drive Series
Product overview
Engineering and welded-steel chain families for demanding conveying, drag and bulk-material applications. This page is prepared for model identification, preliminary selection and quotation. The exact production configuration should be confirmed before order placement.
18 standard modelsKey features
- Robust construction for harsh service
- Options for welded steel and heavy-duty designs
- Custom attachments and special materials available
- Suitable for abrasive and contaminated environments
Standard & custom
Stock standard sizes plus drawing-based variants.
Matched supply
Mating parts supplied together to guarantee fit.
Inspected before shipment
Critical dimensions checked; reports on request.
Specifications
Models & specifications
Values are nominal; confirm final dimensions against the approved drawing.
| Model | Family | Construction | Material | Application |
|---|---|---|---|---|
| WR82 | WR82 | Welded steel | Heat-treated carbon/alloy steel | Heavy conveyor / bulk handling |
| WR78 | WR78 | Welded steel | Heat-treated carbon/alloy steel | Heavy conveyor / bulk handling |
| WR150 | WR150 | Welded steel | Heat-treated carbon/alloy steel | Heavy conveyor / bulk handling |
| WR132 | WR132 | Welded steel | Heat-treated carbon/alloy steel | Heavy conveyor / bulk handling |
| WR124 | WR124 | Welded steel | Heat-treated carbon/alloy steel | Heavy conveyor / bulk handling |

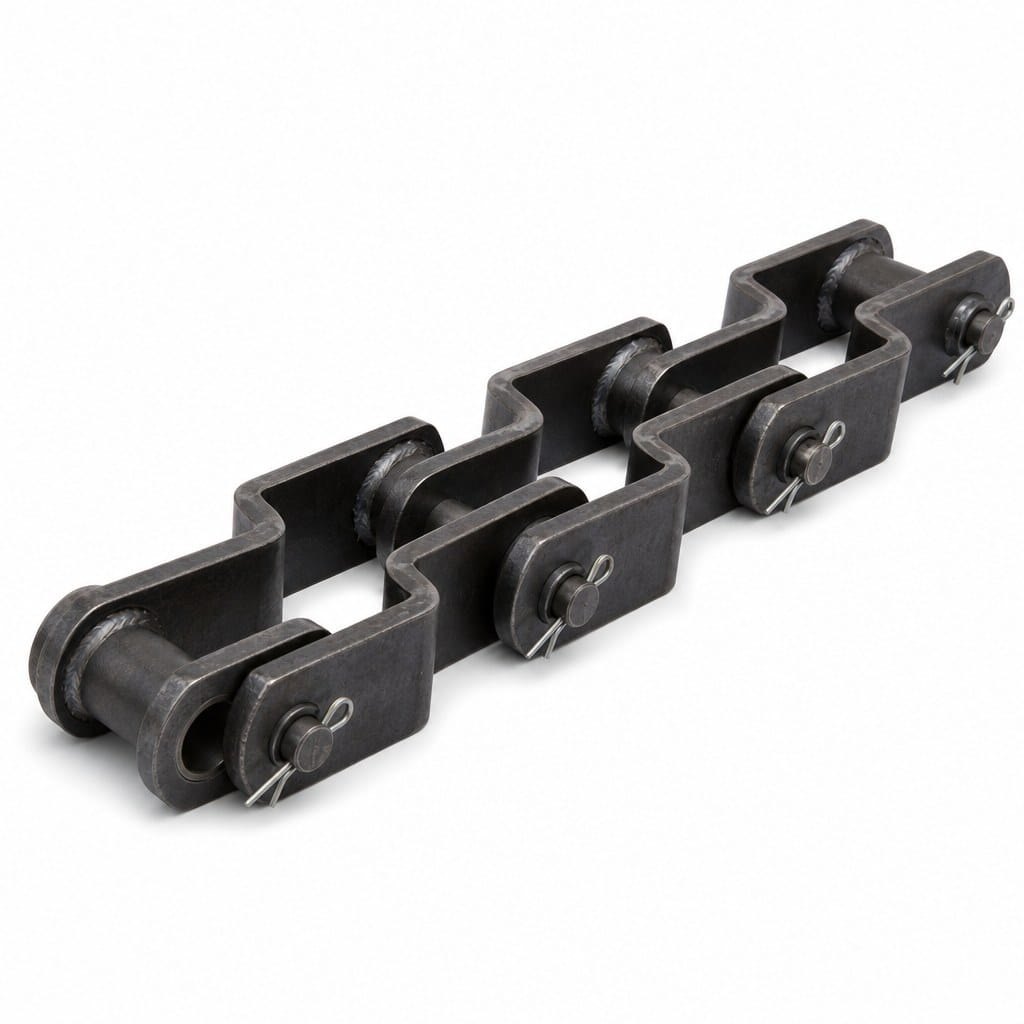

| WH82 | WH82 | Welded steel | Heat-treated carbon/alloy steel | Heavy conveyor / bulk handling |
| WH78 | WH78 | Welded steel | Heat-treated carbon/alloy steel | Heavy conveyor / bulk handling |
| WH150 | WH150 | Welded steel | Heat-treated carbon/alloy steel | Heavy conveyor / bulk handling |
| WH132 | WH132 | Welded steel | Heat-treated carbon/alloy steel | Heavy conveyor / bulk handling |
| WH124 | WH124 | Welded steel | Heat-treated carbon/alloy steel | Heavy conveyor / bulk handling |

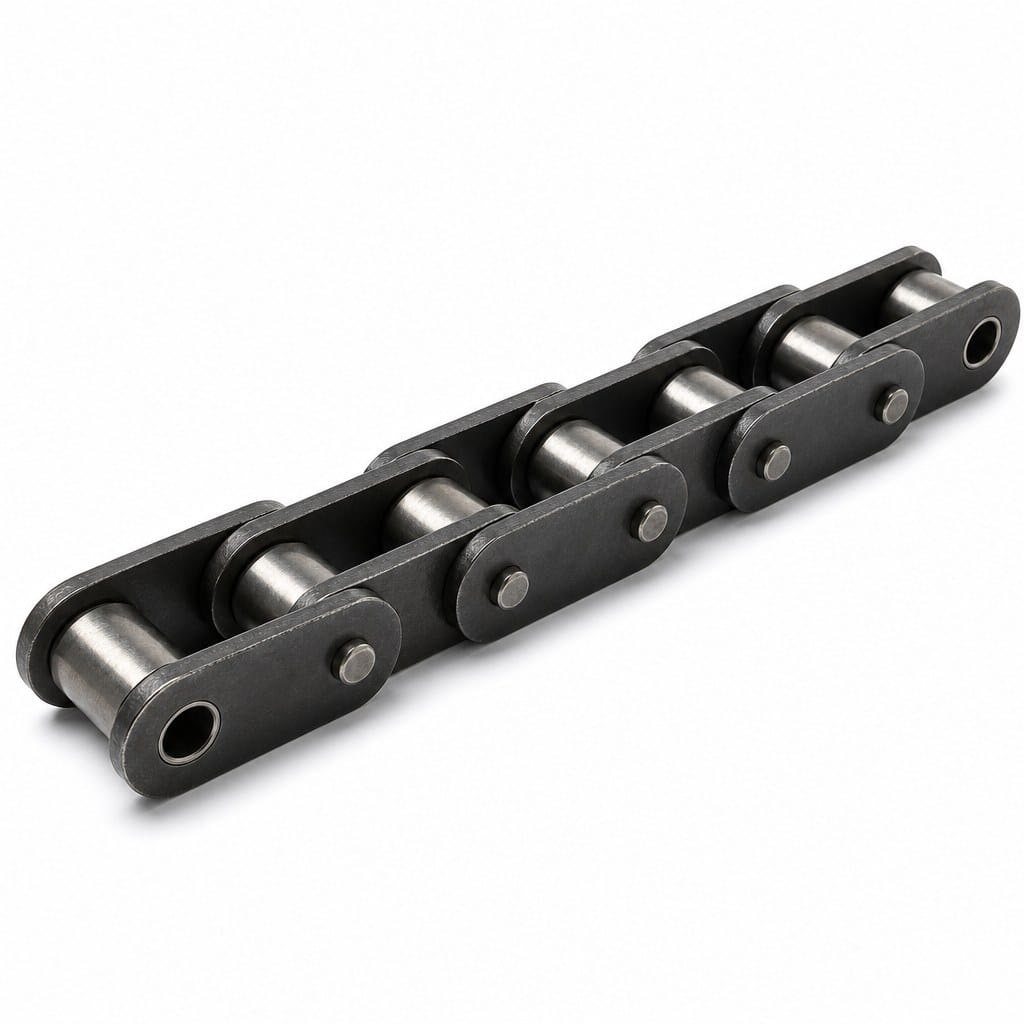

| C77 | C77 | Heavy-duty engineering chain | Heat-treated carbon/alloy steel | Heavy conveyor / bulk handling |
| C60 | C60 | Heavy-duty engineering chain | Heat-treated carbon/alloy steel | Heavy conveyor / bulk handling |
| C55 | C55 | Heavy-duty engineering chain | Heat-treated carbon/alloy steel | Heavy conveyor / bulk handling |
| C188 | C188 | Heavy-duty engineering chain | Heat-treated carbon/alloy steel | Heavy conveyor / bulk handling |
| 81XHH | 81 | Heavy-duty engineering chain | Heat-treated carbon/alloy steel | Heavy conveyor / bulk handling |
| 81XHD | 81 | Heavy-duty engineering chain | Heat-treated carbon/alloy steel | Heavy conveyor / bulk handling |
| 81XH | 81 | Heavy-duty engineering chain | Heat-treated carbon/alloy steel | Heavy conveyor / bulk handling |
| 81X | 81 | Heavy-duty engineering chain | Heat-treated carbon/alloy steel | Heavy conveyor / bulk handling |
Typical applications
Cement plantsMining and bulk handlingWood and pulp processingHeavy conveyors
Selection guide
- Confirm the transmission type, load, speed and duty cycle.
- Choose model / module / pitch and the matching mating part (chain–sprocket, rack–pinion, belt–pulley, rail–block).
- Specify bore, keyway, length, material, heat treatment and surface finish.
- Send drawings or samples for non-standard parts; we confirm feasibility and quote.
Have a drawing, sample or model number?
Send it to our engineering team — we confirm the specification and reply with a quotation.
