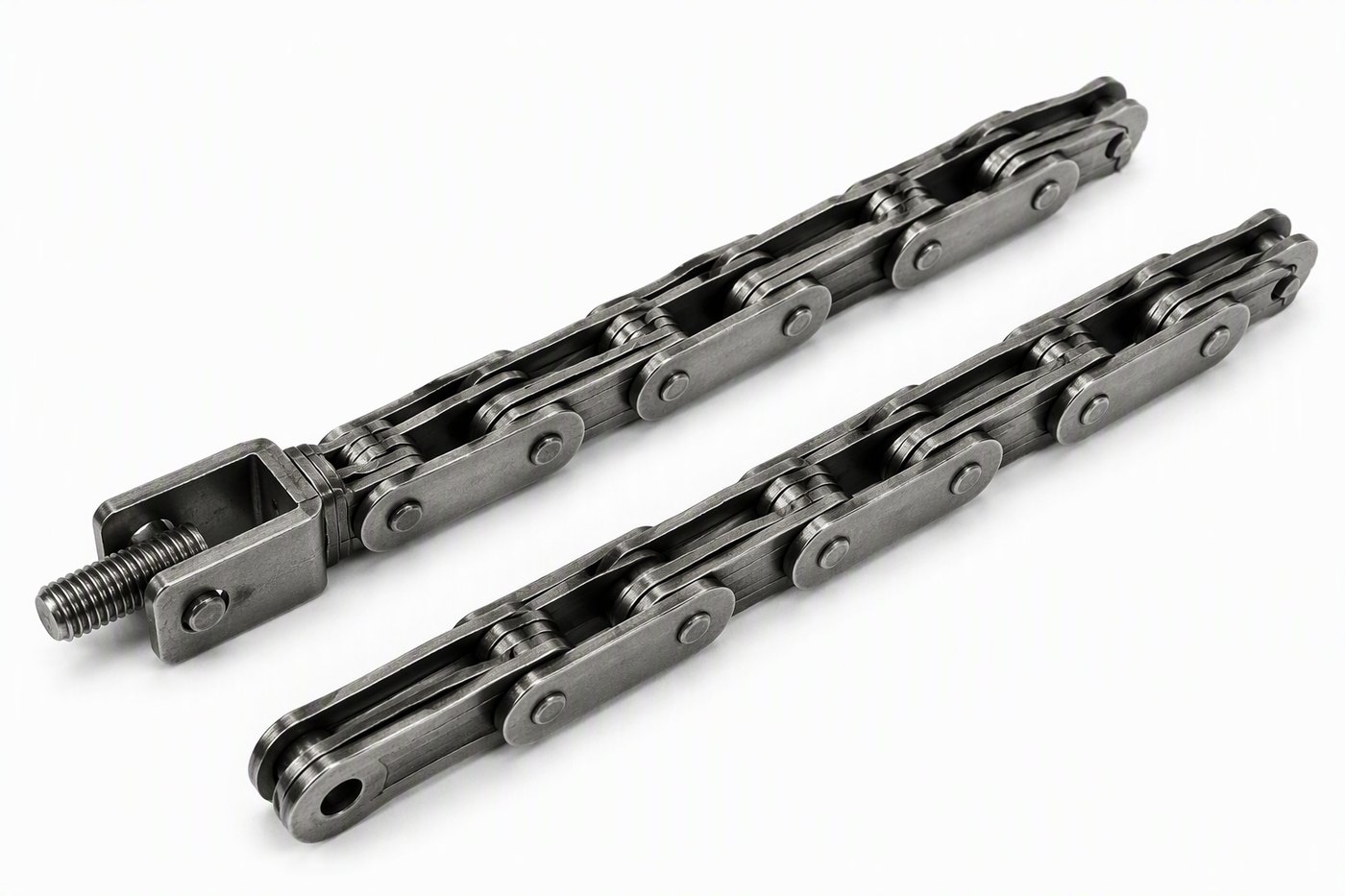

Leaf Chains
Chain Drive Series

Product overview

Leaf chains for lifting and counterbalance mechanisms where high tensile load and compact chain construction are required. This page is prepared for model identification, preliminary selection and quotation. The exact production configuration should be confirmed before order placement.

20 standard models

Key features

  • Plate-and-pin construction without rollers
  • High tensile capacity for lifting duties
  • Multiple lacing combinations
  • Available in common BL-series arrangements
Send inquiryAll models

Standard & custom

Stock standard sizes plus drawing-based variants.

Matched supply

Mating parts supplied together to guarantee fit.

Inspected before shipment

Critical dimensions checked; reports on request.

Specifications

Models & specifications

Values are nominal; confirm final dimensions against the approved drawing.

ModelSeriesLacingMaterialApplication
BL846BL Series46Heat-treated alloy/carbon steelForklift / mast lifting
BL834BL Series34Heat-treated alloy/carbon steelForklift / mast lifting
BL823BL Series23Heat-treated alloy/carbon steelForklift / mast lifting
BL646BL Series46Heat-treated alloy/carbon steelForklift / mast lifting
BL634BL Series34Heat-treated alloy/carbon steelForklift / mast lifting
BL623BL Series23Heat-treated alloy/carbon steelForklift / mast lifting
BL546BL Series46Heat-treated alloy/carbon steelForklift / mast lifting
BL534BL Series34Heat-treated alloy/carbon steelForklift / mast lifting
BL523BL Series23Heat-treated alloy/carbon steelForklift / mast lifting
BL446BL Series46Heat-treated alloy/carbon steelForklift / mast lifting
BL444BL Series44Heat-treated alloy/carbon steelForklift / mast lifting
BL434BL Series34Heat-treated alloy/carbon steelForklift / mast lifting
BL423BL Series23Heat-treated alloy/carbon steelForklift / mast lifting
BL422BL Series22Heat-treated alloy/carbon steelForklift / mast lifting
BL1246BL Series46Heat-treated alloy/carbon steelForklift / mast lifting
BL1234BL Series34Heat-treated alloy/carbon steelForklift / mast lifting
BL1223BL Series23Heat-treated alloy/carbon steelForklift / mast lifting
BL1046BL Series46Heat-treated alloy/carbon steelForklift / mast lifting
BL1034BL Series34Heat-treated alloy/carbon steelForklift / mast lifting
BL1023BL Series23Heat-treated alloy/carbon steelForklift / mast lifting

Typical applications

ForkliftsMast lifting systemsCounterweight systemsIndustrial lifting equipment

Selection guide

  • Confirm the transmission type, load, speed and duty cycle.
  • Choose model / module / pitch and the matching mating part (chain–sprocket, rack–pinion, belt–pulley, rail–block).
  • Specify bore, keyway, length, material, heat treatment and surface finish.
  • Send drawings or samples for non-standard parts; we confirm feasibility and quote.
