Standard Industrial Sprockets
Chain Drive Series
Product overview

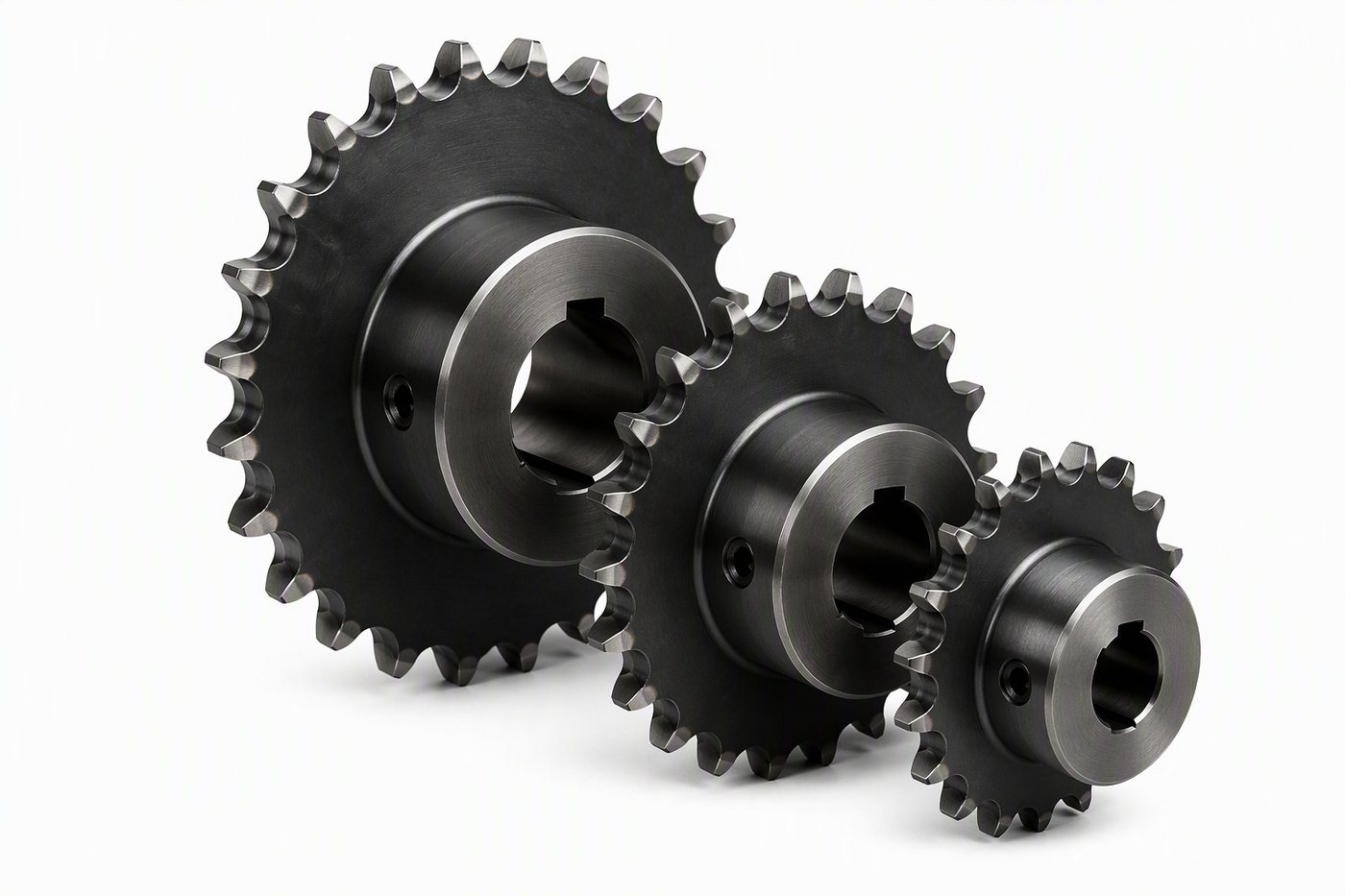

Standard industrial roller-chain sprockets for general transmission systems, available as plate, hub and finished-bore styles. This page is prepared for model identification, preliminary selection and quotation. The exact production configuration should be confirmed before order placement.
24 standard modelsKey features
- Common ISO/DIN chain sizes
- Pilot bore or finished bore options
- C45 steel and stainless options
- Teeth hardening and black oxide available
Standard & custom
Stock standard sizes plus drawing-based variants.
Matched supply
Mating parts supplied together to guarantee fit.
Inspected before shipment
Critical dimensions checked; reports on request.
Specifications
Models & specifications
Values are nominal; confirm final dimensions against the approved drawing.
| Model | Chain Size | Teeth | Rows | Bore |
|---|---|---|---|---|
| 20B-1-25T | 20B-1 | 25 | Simplex | Pilot / finished bore |
| 20B-1-20T | 20B-1 | 20 | Simplex | Pilot / finished bore |
| 20B-1-15T | 20B-1 | 15 | Simplex | Pilot / finished bore |
| 20B-1-12T | 20B-1 | 12 | Simplex | Pilot / finished bore |
| 16B-1-25T | 16B-1 | 25 | Simplex | Pilot / finished bore |
| 16B-1-20T | 16B-1 | 20 | Simplex | Pilot / finished bore |
| 16B-1-15T | 16B-1 | 15 | Simplex | Pilot / finished bore |
| 16B-1-12T | 16B-1 | 12 | Simplex | Pilot / finished bore |
| 12B-1-25T | 12B-1 | 25 | Simplex | Pilot / finished bore |
| 12B-1-20T | 12B-1 | 20 | Simplex | Pilot / finished bore |
| 12B-1-15T | 12B-1 | 15 | Simplex | Pilot / finished bore |
| 12B-1-12T | 12B-1 | 12 | Simplex | Pilot / finished bore |
| 10B-1-25T | 10B-1 | 25 | Simplex | Pilot / finished bore |
| 10B-1-20T | 10B-1 | 20 | Simplex | Pilot / finished bore |
| 10B-1-15T | 10B-1 | 15 | Simplex | Pilot / finished bore |
| 10B-1-12T | 10B-1 | 12 | Simplex | Pilot / finished bore |
| 08B-1-25T | 08B-1 | 25 | Simplex | Pilot / finished bore |
| 08B-1-20T | 08B-1 | 20 | Simplex | Pilot / finished bore |
| 08B-1-15T | 08B-1 | 15 | Simplex | Pilot / finished bore |
| 08B-1-12T | 08B-1 | 12 | Simplex | Pilot / finished bore |
| 06B-1-25T | 06B-1 | 25 | Simplex | Pilot / finished bore |
| 06B-1-20T | 06B-1 | 20 | Simplex | Pilot / finished bore |
| 06B-1-15T | 06B-1 | 15 | Simplex | Pilot / finished bore |
| 06B-1-12T | 06B-1 | 12 | Simplex | Pilot / finished bore |
Typical applications
Industrial machineryConveyorsReducers and drive systemsOEM equipment
Selection guide
- Confirm the transmission type, load, speed and duty cycle.
- Choose model / module / pitch and the matching mating part (chain–sprocket, rack–pinion, belt–pulley, rail–block).
- Specify bore, keyway, length, material, heat treatment and surface finish.
- Send drawings or samples for non-standard parts; we confirm feasibility and quote.
Have a drawing, sample or model number?
Send it to our engineering team — we confirm the specification and reply with a quotation.
