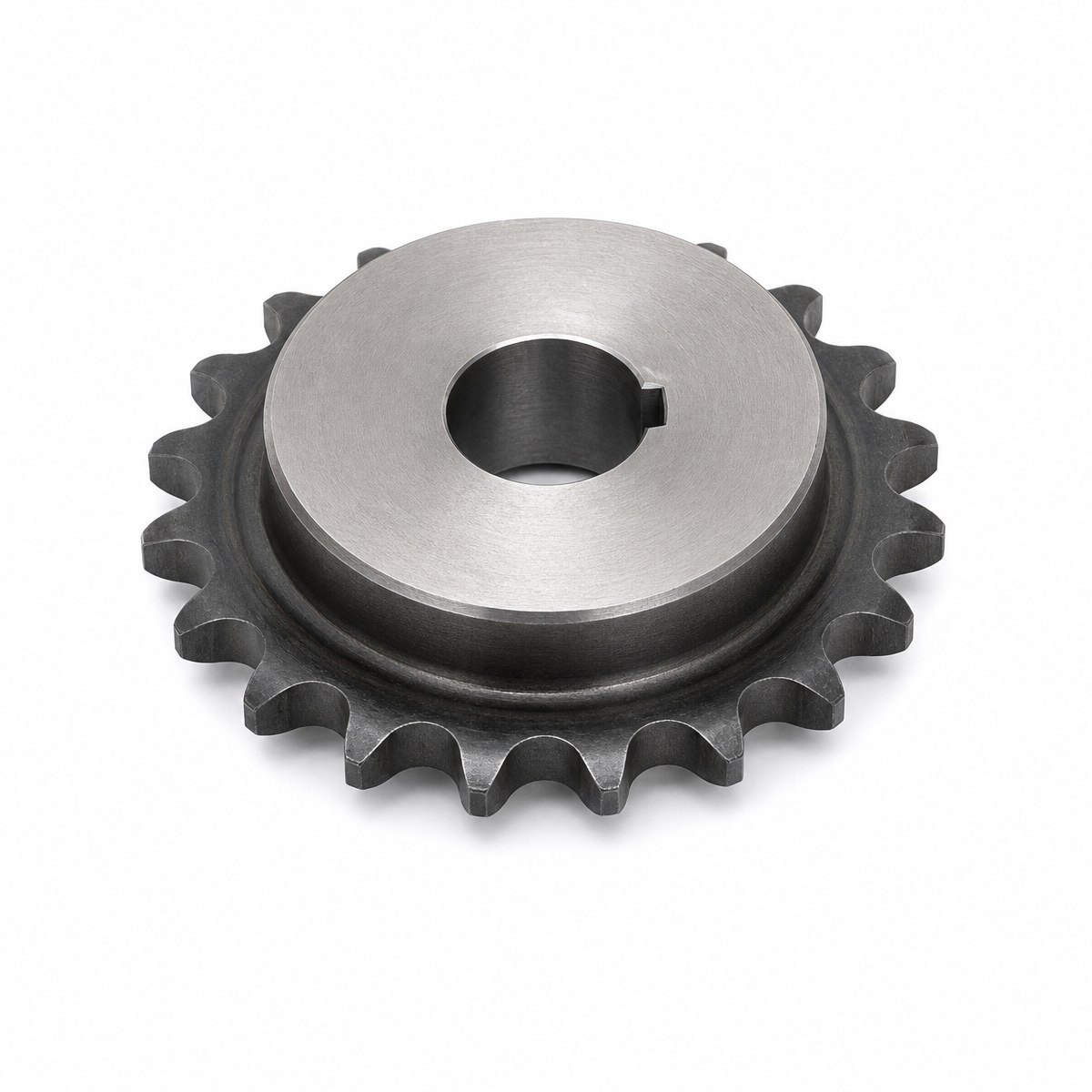

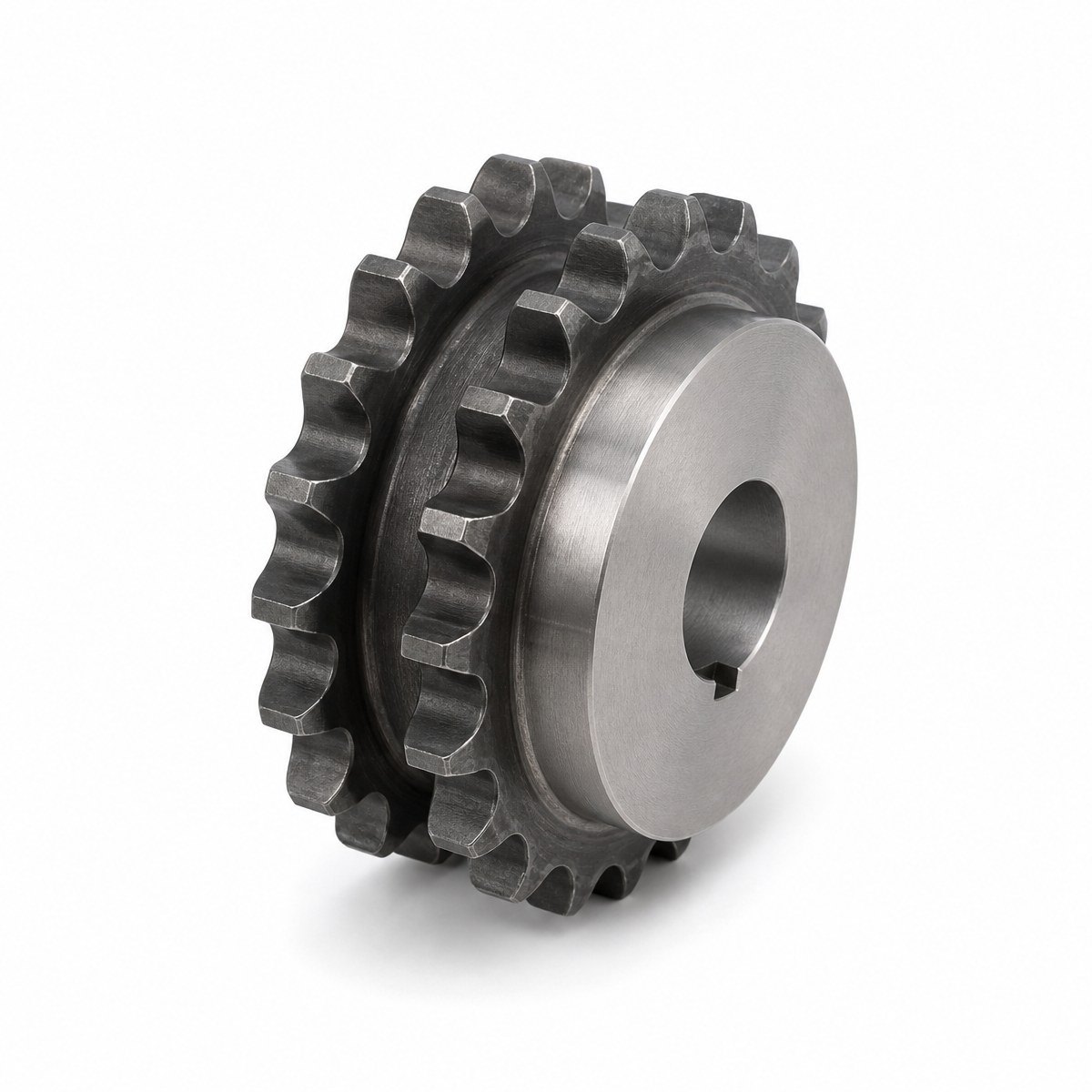

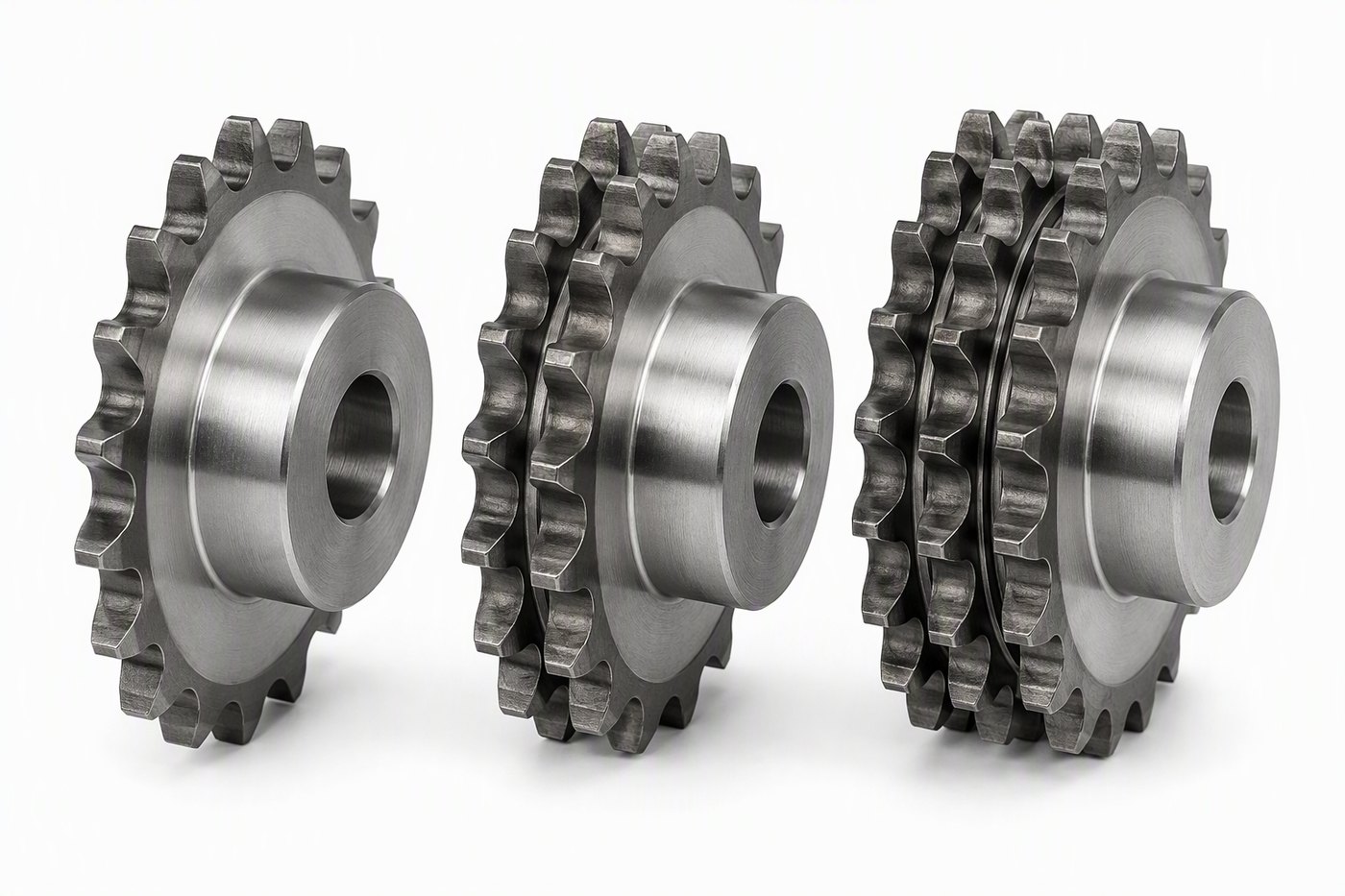

Simplex/Duplex/Triplex Sprockets
Chain Drive Series
Product overview
Roller-chain sprockets covering simplex, duplex and triplex drive arrangements for different torque and power requirements. This page is prepared for model identification, preliminary selection and quotation. The exact production configuration should be confirmed before order placement.
36 standard modelsKey features
- 1-row, 2-row and 3-row configurations
- Common ISO/DIN chain sizes
- Pilot or finished bores
- Heat-treated tooth options
Standard & custom
Stock standard sizes plus drawing-based variants.
Matched supply
Mating parts supplied together to guarantee fit.
Inspected before shipment
Critical dimensions checked; reports on request.
Specifications
Models & specifications
Values are nominal; confirm final dimensions against the approved drawing.
| Model | Chain Size | Teeth | Rows | Bore |
|---|---|---|---|---|
| 16B-3-25T | 16B-3 | 25 | Triplex | Pilot / finished bore |
| 16B-3-20T | 16B-3 | 20 | Triplex | Pilot / finished bore |
| 16B-3-15T | 16B-3 | 15 | Triplex | Pilot / finished bore |
| 16B-2-25T | 16B-2 | 25 | Duplex | Pilot / finished bore |
| 16B-2-20T | 16B-2 | 20 | Duplex | Pilot / finished bore |
| 16B-2-15T | 16B-2 | 15 | Duplex | Pilot / finished bore |
| 16B-1-25T | 16B-1 | 25 | Simplex | Pilot / finished bore |
| 16B-1-20T | 16B-1 | 20 | Simplex | Pilot / finished bore |
| 16B-1-15T | 16B-1 | 15 | Simplex | Pilot / finished bore |
| 12B-3-25T | 12B-3 | 25 | Triplex | Pilot / finished bore |
| 12B-3-20T | 12B-3 | 20 | Triplex | Pilot / finished bore |
| 12B-3-15T | 12B-3 | 15 | Triplex | Pilot / finished bore |
| 12B-2-25T | 12B-2 | 25 | Duplex | Pilot / finished bore |
| 12B-2-20T | 12B-2 | 20 | Duplex | Pilot / finished bore |
| 12B-2-15T | 12B-2 | 15 | Duplex | Pilot / finished bore |
| 12B-1-25T | 12B-1 | 25 | Simplex | Pilot / finished bore |
| 12B-1-20T | 12B-1 | 20 | Simplex | Pilot / finished bore |
| 12B-1-15T | 12B-1 | 15 | Simplex | Pilot / finished bore |
| 10B-3-25T | 10B-3 | 25 | Triplex | Pilot / finished bore |
| 10B-3-20T | 10B-3 | 20 | Triplex | Pilot / finished bore |
| 10B-3-15T | 10B-3 | 15 | Triplex | Pilot / finished bore |
| 10B-2-25T | 10B-2 | 25 | Duplex | Pilot / finished bore |
| 10B-2-20T | 10B-2 | 20 | Duplex | Pilot / finished bore |
| 10B-2-15T | 10B-2 | 15 | Duplex | Pilot / finished bore |
| 10B-1-25T | 10B-1 | 25 | Simplex | Pilot / finished bore |
| 10B-1-20T | 10B-1 | 20 | Simplex | Pilot / finished bore |
| 10B-1-15T | 10B-1 | 15 | Simplex | Pilot / finished bore |
| 08B-3-25T | 08B-3 | 25 | Triplex | Pilot / finished bore |
| 08B-3-20T | 08B-3 | 20 | Triplex | Pilot / finished bore |
| 08B-3-15T | 08B-3 | 15 | Triplex | Pilot / finished bore |
| 08B-2-25T | 08B-2 | 25 | Duplex | Pilot / finished bore |
| 08B-2-20T | 08B-2 | 20 | Duplex | Pilot / finished bore |
| 08B-2-15T | 08B-2 | 15 | Duplex | Pilot / finished bore |
| 08B-1-25T | 08B-1 | 25 | Simplex | Pilot / finished bore |
| 08B-1-20T | 08B-1 | 20 | Simplex | Pilot / finished bore |
| 08B-1-15T | 08B-1 | 15 | Simplex | Pilot / finished bore |
Typical applications
Industrial drivesConveyorsMachine toolsHeavy equipment
Selection guide
- Confirm the transmission type, load, speed and duty cycle.
- Choose model / module / pitch and the matching mating part (chain–sprocket, rack–pinion, belt–pulley, rail–block).
- Specify bore, keyway, length, material, heat treatment and surface finish.
- Send drawings or samples for non-standard parts; we confirm feasibility and quote.
Have a drawing, sample or model number?
Send it to our engineering team — we confirm the specification and reply with a quotation.
