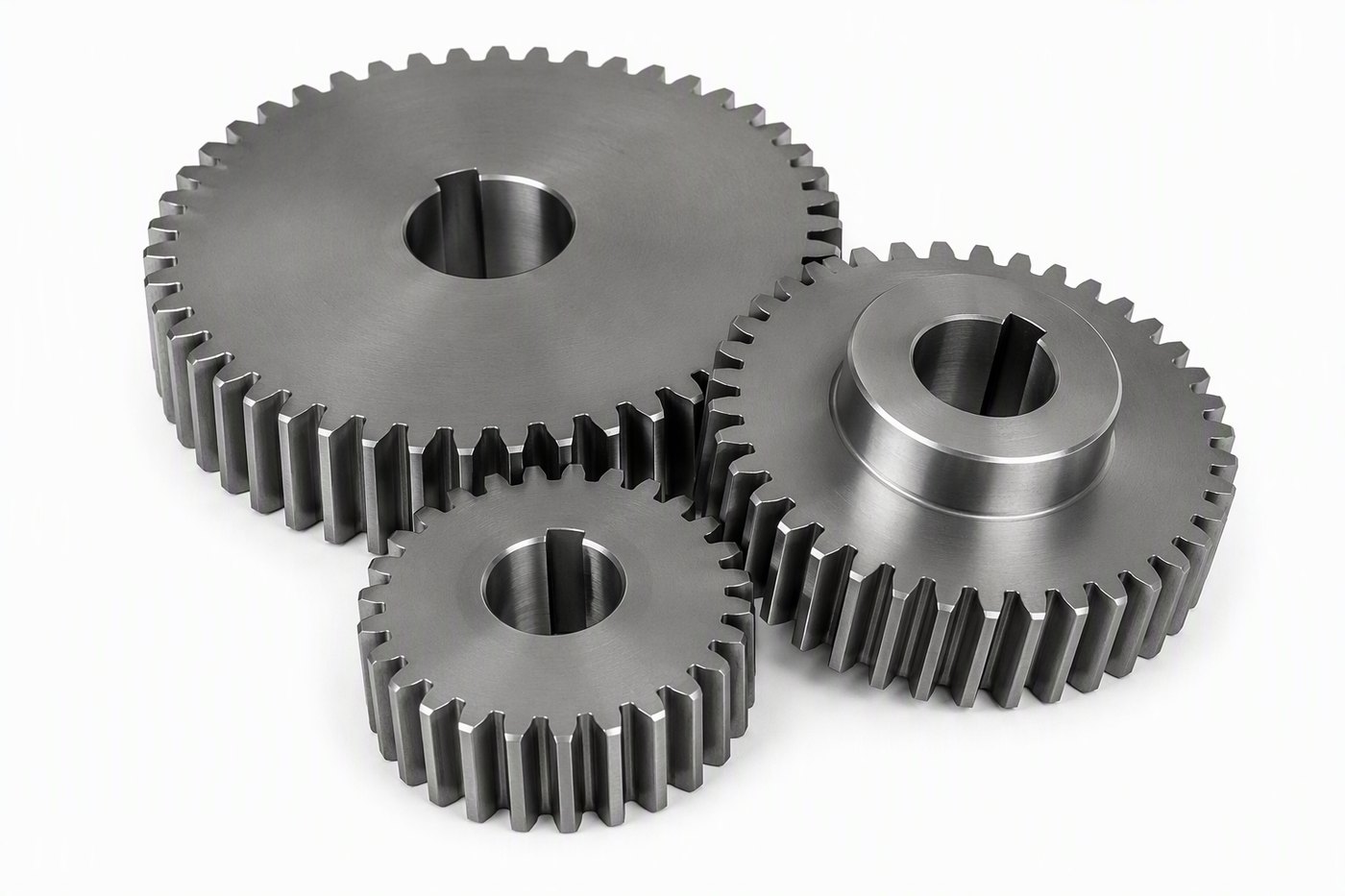

Spur Gears
Gear, Rack & Synchronous Drive Series
Product overview
Straight-tooth spur gears for parallel-shaft power transmission, available in standard modules and custom bore/hub configurations. This page is prepared for model identification, preliminary selection and quotation. The exact production configuration should be confirmed before order placement.
30 standard modelsKey features
- Standard 20° pressure-angle options
- C45 and alloy-steel material options
- Hobbing, shaping and grinding processes available
- Teeth hardening and custom bores/keyways available
Standard & custom
Stock standard sizes plus drawing-based variants.
Matched supply
Mating parts supplied together to guarantee fit.
Inspected before shipment
Critical dimensions checked; reports on request.
Specifications
Models & specifications
Values are nominal; confirm final dimensions against the approved drawing.
| Model | Module | Teeth | Pressure Angle | Material |
|---|---|---|---|---|
| M4-Z40 | 4 | 40 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M4-Z30 | 4 | 30 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M4-Z25 | 4 | 25 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M4-Z20 | 4 | 20 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M4-Z15 | 4 | 15 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M3-Z40 | 3 | 40 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M3-Z30 | 3 | 30 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M3-Z25 | 3 | 25 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M3-Z20 | 3 | 20 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M3-Z15 | 3 | 15 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M2.5-Z40 | 2.5 | 40 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M2.5-Z30 | 2.5 | 30 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M2.5-Z25 | 2.5 | 25 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M2.5-Z20 | 2.5 | 20 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M2.5-Z15 | 2.5 | 15 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M2-Z40 | 2 | 40 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M2-Z30 | 2 | 30 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M2-Z25 | 2 | 25 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M2-Z20 | 2 | 20 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M2-Z15 | 2 | 15 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M1.5-Z40 | 1.5 | 40 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M1.5-Z30 | 1.5 | 30 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M1.5-Z25 | 1.5 | 25 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M1.5-Z20 | 1.5 | 20 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M1.5-Z15 | 1.5 | 15 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M1-Z40 | 1 | 40 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M1-Z30 | 1 | 30 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M1-Z25 | 1 | 25 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M1-Z20 | 1 | 20 | 20° | C45 / alloy steel / stainless / engineering plastic |
| M1-Z15 | 1 | 15 | 20° | C45 / alloy steel / stainless / engineering plastic |
Typical applications
GearboxesMachine toolsAutomation equipmentIndustrial machinery
Selection guide
- Confirm the transmission type, load, speed and duty cycle.
- Choose model / module / pitch and the matching mating part (chain–sprocket, rack–pinion, belt–pulley, rail–block).
- Specify bore, keyway, length, material, heat treatment and surface finish.
- Send drawings or samples for non-standard parts; we confirm feasibility and quote.
Have a drawing, sample or model number?
Send it to our engineering team — we confirm the specification and reply with a quotation.
