Sliding Gate Gear Racks
Gear, Rack & Synchronous Drive Series
Product overview
Sliding-gate gear racks in steel and nylon constructions for automatic gate-opening systems. This page is prepared for model identification, preliminary selection and quotation. The exact production configuration should be confirmed before order placement.
10 standard modelsKey features

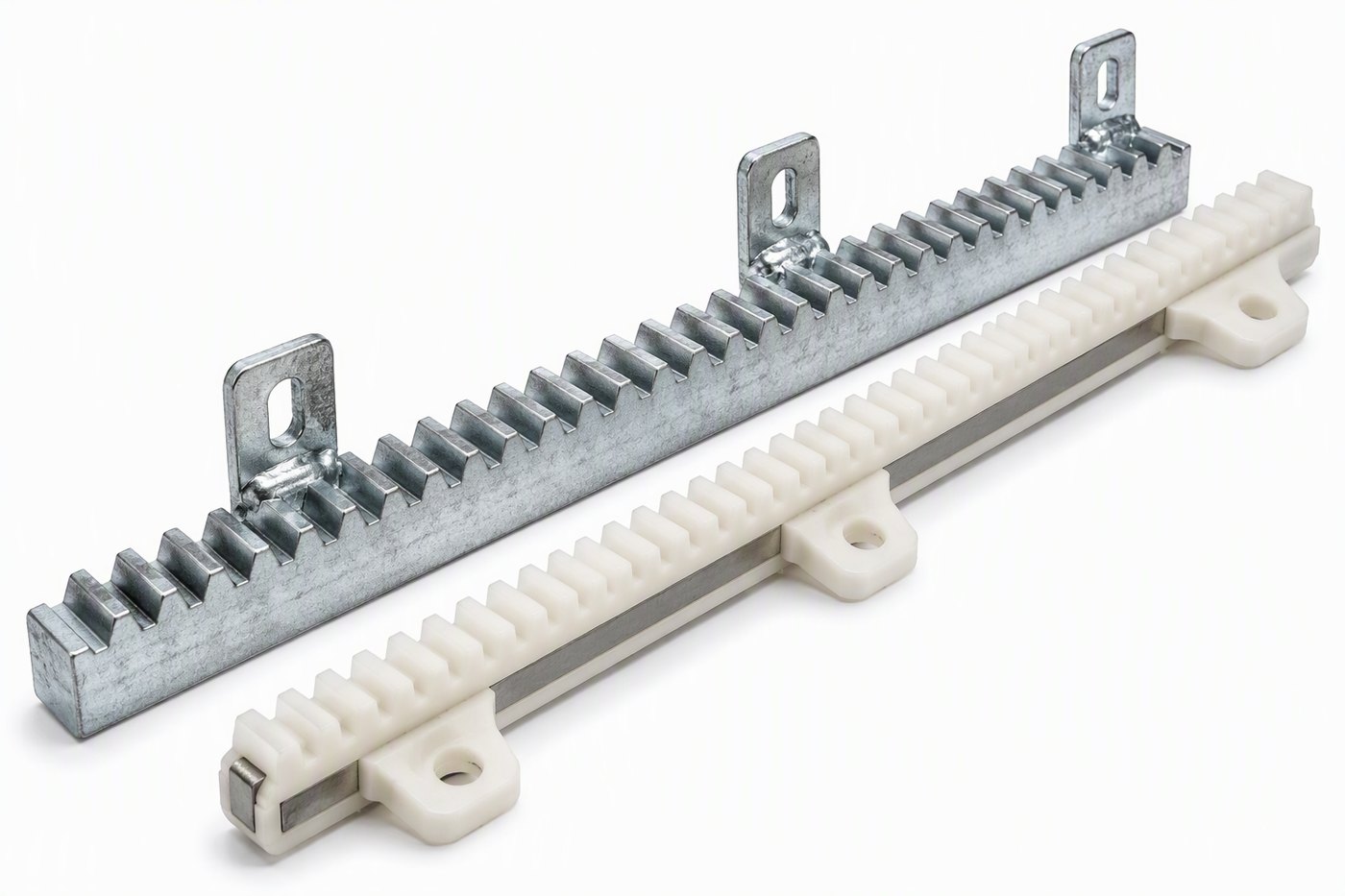

- Steel rack sections for robust outdoor service
- Nylon rack options with integral mounting lugs
- M4 is a common gate-drive tooth module
- Multiple mounting-hole/lug arrangements
Standard & custom
Stock standard sizes plus drawing-based variants.
Matched supply
Mating parts supplied together to guarantee fit.
Inspected before shipment
Critical dimensions checked; reports on request.
Specifications
Models & specifications
Values are nominal; confirm final dimensions against the approved drawing.
| Model | Material | Module | Section / Mounting | Length |
|---|---|---|---|---|
| ST-M4-9X30X1005 | Steel | M4 | 9 x 30 mm section | 1005 mm |
| ST-M4-8X30X1005 | Steel | M4 | 8 x 30 mm section | 1005 mm |
| ST-M4-12X30X1005 | Steel | M4 | 12 x 30 mm section | 1005 mm |
| ST-M4-11X30X1005 | Steel | M4 | 11 x 30 mm section | 1005 mm |
| ST-M4-10X30X1005 | Steel | M4 | 10 x 30 mm section | 1005 mm |

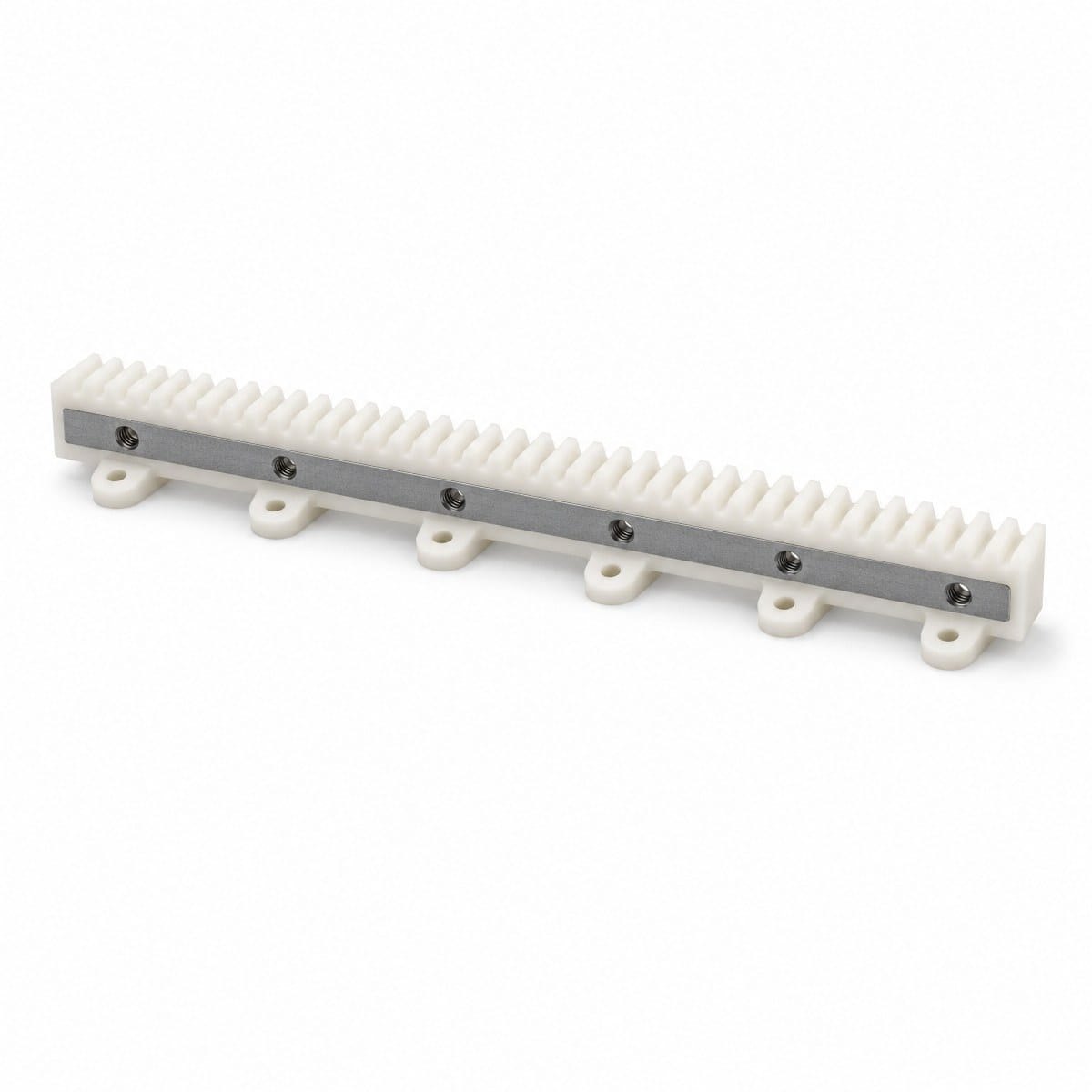

| NY-M4-6EYE | Nylon / steel core | M4 | 6 mounting eyes | 1000 mm |

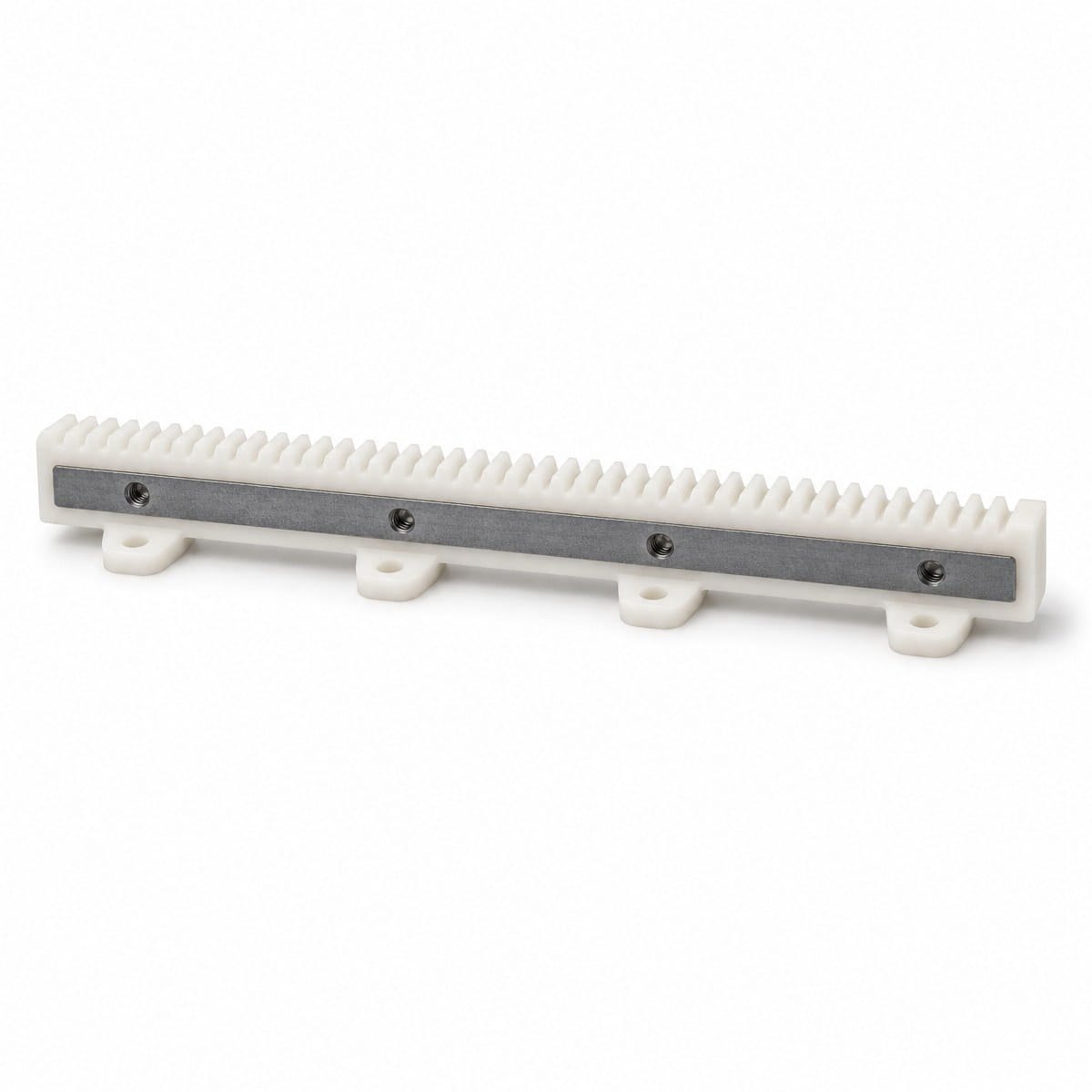

| NY-M4-4EYE | Nylon / steel core | M4 | 4 mounting eyes | 1000 mm |

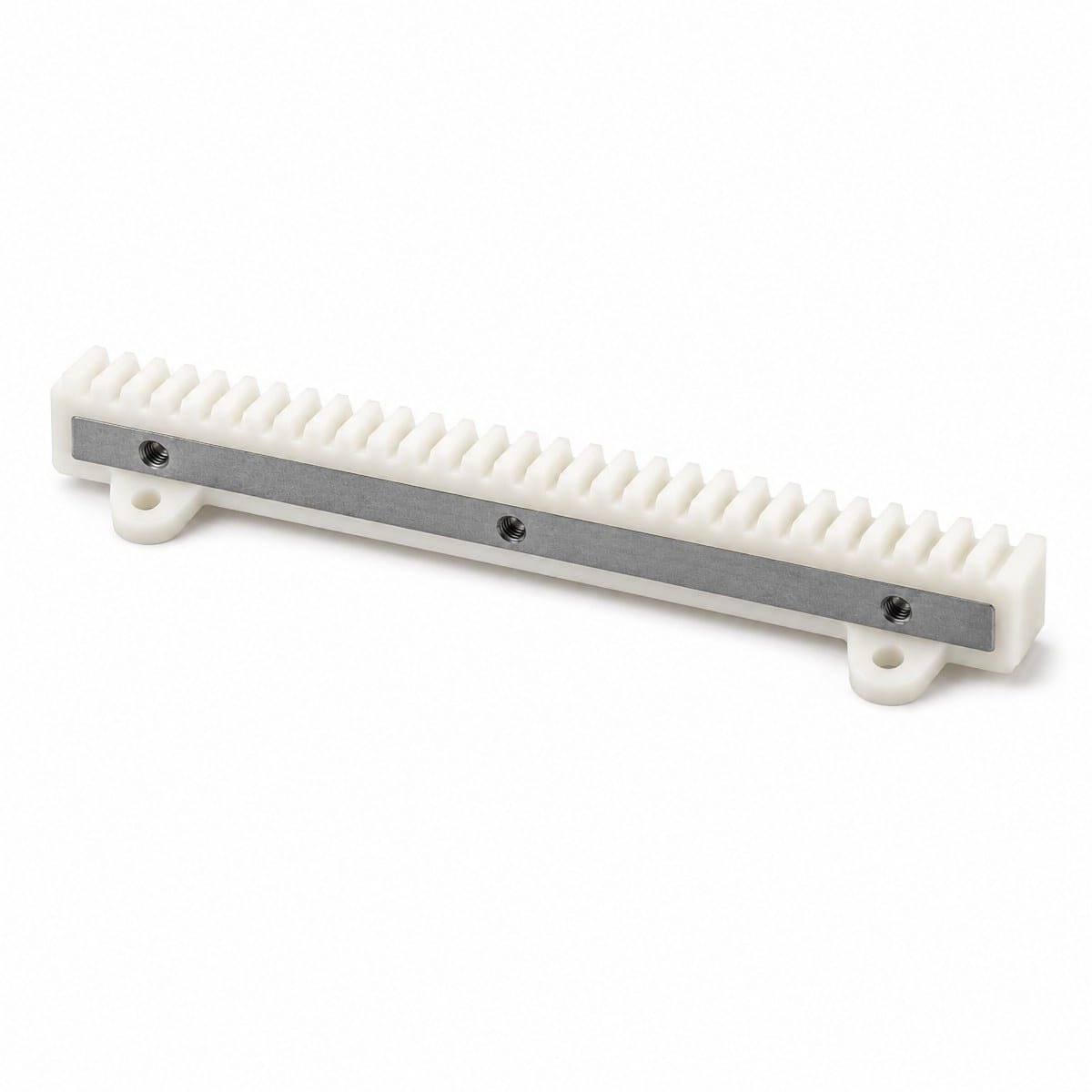

| NY-M4-2EYE | Nylon / steel core | M4 | 2 mounting eyes | 1000 mm |
| NY-M4-2EYE-HD | Reinforced nylon / steel core | M4 | 2 heavy-duty mounting eyes | 1000 mm |
Typical applications
Sliding gatesAutomatic gate openersResidential entrancesCommercial access systems
Selection guide
- Confirm the transmission type, load, speed and duty cycle.
- Choose model / module / pitch and the matching mating part (chain–sprocket, rack–pinion, belt–pulley, rail–block).
- Specify bore, keyway, length, material, heat treatment and surface finish.
- Send drawings or samples for non-standard parts; we confirm feasibility and quote.
Have a drawing, sample or model number?
Send it to our engineering team — we confirm the specification and reply with a quotation.
