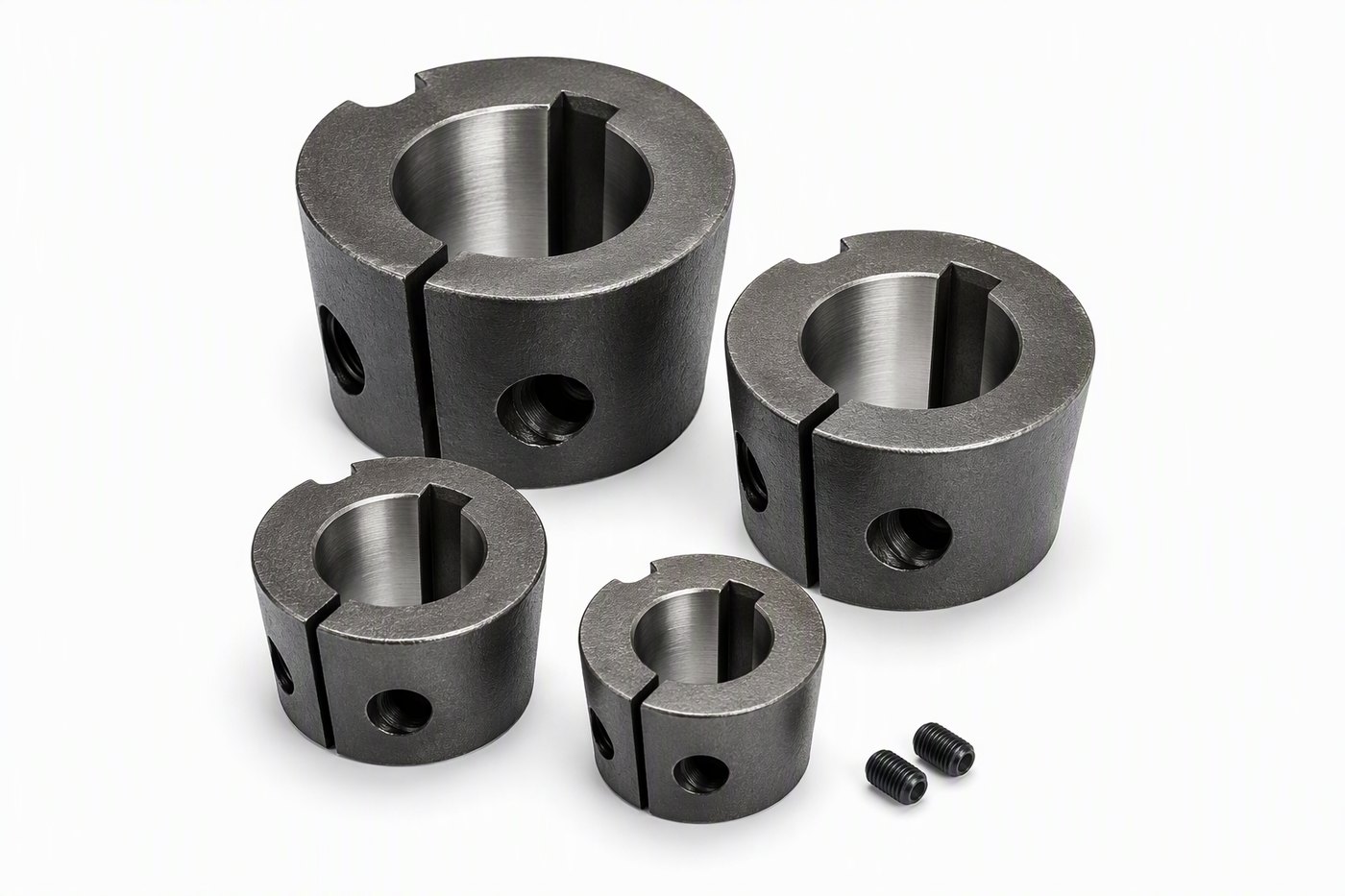

Taper Bushings
Gear, Rack & Synchronous Drive Series
Product overview
Split taper-lock bushings for mounting pulleys, sprockets and hubs onto shafts with convenient installation and removal. This page is prepared for model identification, preliminary selection and quotation. The exact production configuration should be confirmed before order placement.
20 standard modelsKey features
- Split tapered design
- Standard metric/inch finished bores available
- Keyway and clamping screw arrangement
- Reusable mounting for compatible hubs
Standard & custom
Stock standard sizes plus drawing-based variants.
Matched supply
Mating parts supplied together to guarantee fit.
Inspected before shipment
Critical dimensions checked; reports on request.
Specifications
Models & specifications
Values are nominal; confirm final dimensions against the approved drawing.
| Model | Bushing Series | Bore | Material | Mounting |
|---|---|---|---|---|
| TBUSH-5050 | 5050 | Standard metric / inch bore options | Cast iron / steel | Split taper-lock |
| TBUSH-5040 | 5040 | Standard metric / inch bore options | Cast iron / steel | Split taper-lock |
| TBUSH-4545 | 4545 | Standard metric / inch bore options | Cast iron / steel | Split taper-lock |
| TBUSH-4535 | 4535 | Standard metric / inch bore options | Cast iron / steel | Split taper-lock |
| TBUSH-4040 | 4040 | Standard metric / inch bore options | Cast iron / steel | Split taper-lock |
| TBUSH-4030 | 4030 | Standard metric / inch bore options | Cast iron / steel | Split taper-lock |
| TBUSH-3535 | 3535 | Standard metric / inch bore options | Cast iron / steel | Split taper-lock |
| TBUSH-3525 | 3525 | Standard metric / inch bore options | Cast iron / steel | Split taper-lock |
| TBUSH-3030 | 3030 | Standard metric / inch bore options | Cast iron / steel | Split taper-lock |
| TBUSH-3020 | 3020 | Standard metric / inch bore options | Cast iron / steel | Split taper-lock |
| TBUSH-2525 | 2525 | Standard metric / inch bore options | Cast iron / steel | Split taper-lock |
| TBUSH-2517 | 2517 | Standard metric / inch bore options | Cast iron / steel | Split taper-lock |
| TBUSH-2012 | 2012 | Standard metric / inch bore options | Cast iron / steel | Split taper-lock |
| TBUSH-1615 | 1615 | Standard metric / inch bore options | Cast iron / steel | Split taper-lock |
| TBUSH-1610 | 1610 | Standard metric / inch bore options | Cast iron / steel | Split taper-lock |
| TBUSH-1310 | 1310 | Standard metric / inch bore options | Cast iron / steel | Split taper-lock |
| TBUSH-1215 | 1215 | Standard metric / inch bore options | Cast iron / steel | Split taper-lock |
| TBUSH-1210 | 1210 | Standard metric / inch bore options | Cast iron / steel | Split taper-lock |
| TBUSH-1108 | 1108 | Standard metric / inch bore options | Cast iron / steel | Split taper-lock |
| TBUSH-1008 | 1008 | Standard metric / inch bore options | Cast iron / steel | Split taper-lock |
Typical applications
Timing pulleysV-belt pulleysSprocketsIndustrial hubs
Selection guide
- Confirm the transmission type, load, speed and duty cycle.
- Choose model / module / pitch and the matching mating part (chain–sprocket, rack–pinion, belt–pulley, rail–block).
- Specify bore, keyway, length, material, heat treatment and surface finish.
- Send drawings or samples for non-standard parts; we confirm feasibility and quote.
Have a drawing, sample or model number?
Send it to our engineering team — we confirm the specification and reply with a quotation.
